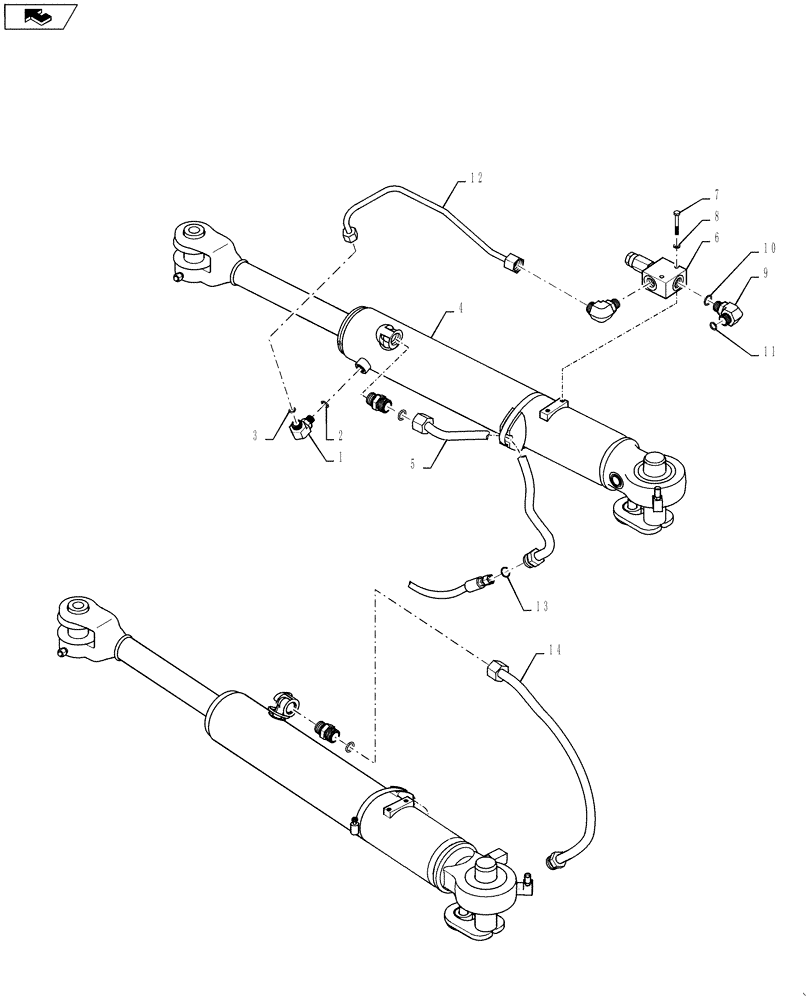

Запчасти Case 921F (41.216.01[04]) - STEERING CYLINDER INSTALLATION (41) - STEERING

1

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Inc. 2, 3

1шт.

2

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

Boss End

1шт.

3

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

4

NSS

NOT SOLD SEPARAT

Fro Complete Cylinder See 41.216.02

1шт.

5

84346119

HYD TUBE

Steering Cyclinder Left Side

1шт.

6

84346122

VALVE PRESSURE RELIE

Steering

2шт.

7

827-6045

BOLT,Hex, M6 x 45mm, Cl 10.9

4шт.

8

892-11006

LOCK WASHER,M6

4шт.

9

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Inc.10, 11

3шт.

10

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

Boss End

3шт.

11

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

3шт.

12

84346120

HYD TUBE

Steering Cyclinder Right Side

1шт.

13

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

14

84346118

HYD TUBE

Steering Cyclinder Right Side

1шт.
