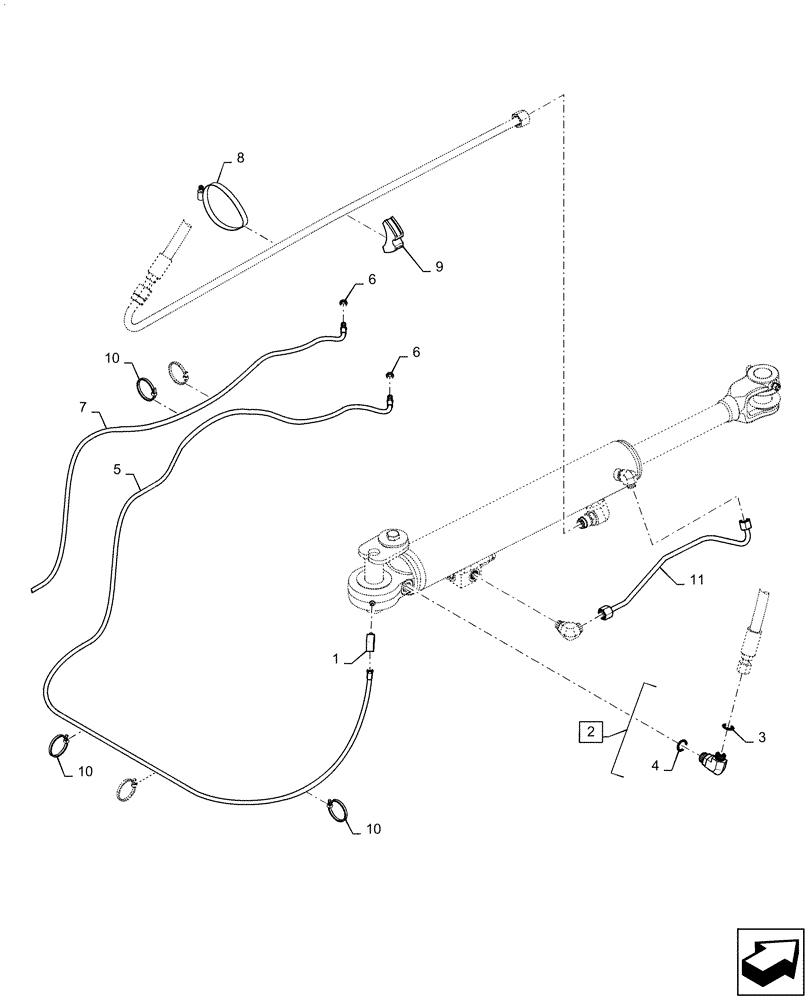

Запчасти Case 921F (41.216.01[03]) - STEERING CYLINDER INSTALLATION (41) - STEERING

1

328082A1

ELBOW

2шт.

2

700-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Inc. 3, 4

1шт.

3

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

4

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

5

L54694

HOSE,4.8mm ID x 1041mm L

Grease

1шт.

6

F53473

LOCK NUT,1/8-27 NPSM

2шт.

7

318013A1

FLEXIBLE HOSE,4.8mm ID x 2723mm L

Grease

1шт.

8

214-1480

HOSE CLAMP,#80, 4.62" - 5.5", Type F Worm

2шт.

9

8500483

BLOCK

2шт.

10

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

7шт.

11

84346121

HYD TUBE

Left Cylinder

1шт.
