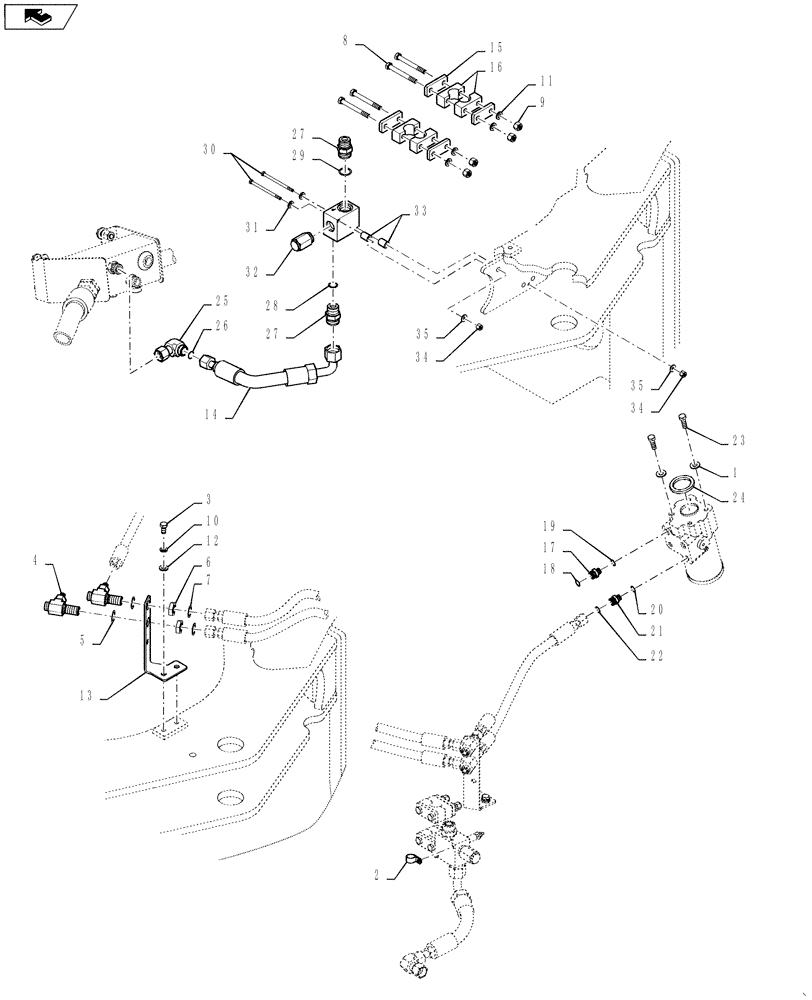

Запчасти Case 921F (41.216.01[02]) - STEERING CYLINDER INSTALLATION (41) - STEERING

1

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

2

515-21190

CLAMP,3/4", Insul, 1/4" Bolt

1шт.

3

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

4

701-423

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Inc. 5

2шт.

5

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

3шт.

6

701-903

NUT,13/16" - 16

Inc. 7

2шт.

7

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

8

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

821F only

4шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

821F only

4шт.

10

892-11010

LOCK WASHER,M10

2шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

821F only

4шт.

12

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

13

8602342

BRACKET

Bulkhead

1шт.

14

87563042

HOSE ASSY.

821F only

1шт.

14

84243194

HOSE ASSY.

921F only

1шт.

15

367658A1

PLATE

821F only

4шт.

16

372453A1

BLOCK

821F only Tube Mounting

2шт.

17

700-107

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M22 x 1.5 Male ORB

Inc. 18, 19

1шт.

18

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

19

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

20

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Inc. 21, 22

1шт.

21

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

22

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

23

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

24

76043957

GASKET

Steering Orbitol

1шт.

25

701-361

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Female ORFS

Inc. 26

1шт.

26

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

27

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Inc. 28, 29

2шт.

28

14438185

O-RING,24mm ID x 3mm

1шт.

29

70923843

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

30

827-6100

BOLT,Hex, M6 x 100mm, Cl 10.9

2шт.

31

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

32

87427823

VALVE PRESSURE RELIE

1шт.

33

87563043

SPACER

SPACER

2шт.

34

832-10406

NUT,M6 x 1, Cl 8

2шт.

35

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.
