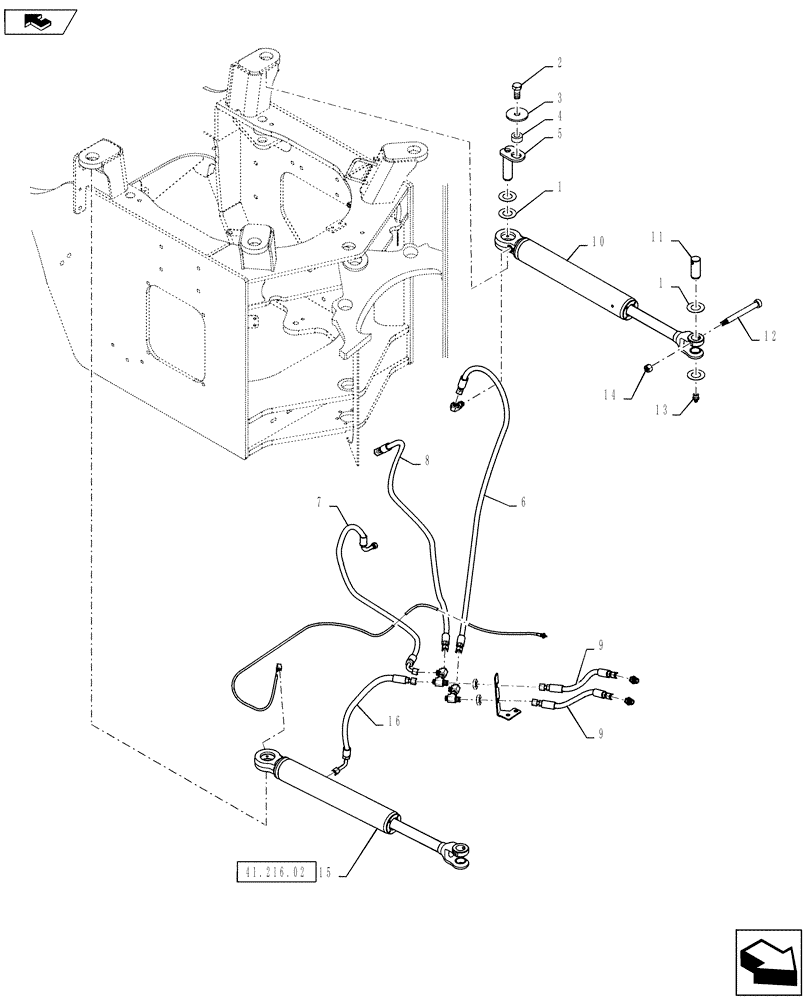

Запчасти Case 921F (41.216.01[01]) - STEERING CYLINDER INSTALLATION (41) - STEERING

1

8501088

WASHER,41mm ID x 76mm OD x 1.59mm Thk

8шт.

2

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

2шт.

3

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

2шт.

4

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

2шт.

5

87351646

PIN,39.96mm OD x 141mm L

Steering Rear Chassis

2шт.

6

87338203

HOSE ASSY.,12.7mm ID x 912mm L, SAE 100R16

HOSE, Left Side Base

1шт.

7

84489972

HOSE ASSY.,12.7mm ID x 644mm L, SAE 100R1

Drain Left Side

1шт.

8

87338205

HOSE ASSY.,12.7mm ID x 745mm L, SAE 100R16

HOSE, Left Side Rod

1шт.

9

87398127

HOSE ASSY.

Steering Cyclinder

2шт.

10

84351777

HYDRAULIC CYLINDER,Double Acting, 44.5mm Rod, 481.9mm Stroke

Steering Left Side

1шт.

10

84351777R

REMAN-HYD CYLINDER

821F, 921F, Both WHEEL LOADER - TIER 4 / TIER 2 (NA), Steering Left Side

1шт.

10

84351777C

CORE-HYD CYLINDER

Return Number

1шт.

11

87559561

PIN,40mm OD x 95.1mm L

Front Steering

2шт.

12

87308853

HEX SOC SCREW,M8 x 96.4mm, Cl 12.9

2шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

14

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

15

84351775

HYDRAULIC CYLINDER

Steering Right Side See Fig 41.216.02

1шт.

15

84351775R

REMAN-HYD CYLINDER

821F, 921F, Both WHEEL LOADER - TIER 4 / TIER 2 (NA), Steering Right Side

1шт.

15

84351775C

CORE-HYD CYLINDER

Return Number

1шт.

16

84489971

HOSE ASSY.

Drain Right Side

1шт.
