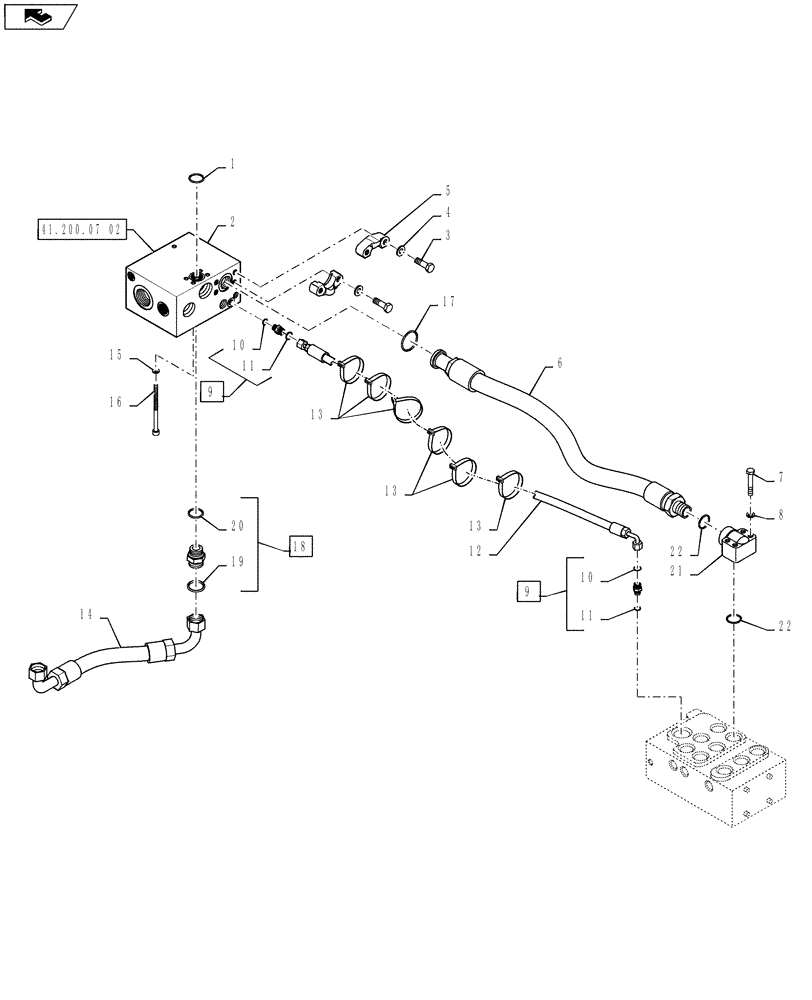

Запчасти Case 921F (41.200.09[01]) - PRIORITY PUMP INSTALLATIOM 921F (41) - STEERING

1

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

2шт.

2

84242121

STEERING VALVE

Priority, See Fig 41.200.07 (02)

1шт.

3

87015765

BOLT,Hex, M14 x 45mm, Cl 10.9, Full Thd

4шт.

4

896-11014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

4шт.

5

87680118

CLAMP

2шт.

6

84256922

HOSE ASSY.

Articulation Pressure, Incl 21 - 22

1шт.

7

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

4шт.

8

892-11012

LOCK WASHER,M12

4шт.

9

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Inc. 10, 11

2шт.

10

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

2шт.

11

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

Boss End

2шт.

12

84270692

HOSE ASSY.

Articulation Load Sense

1шт.

13

84266050

CABLE TIE,384mm L, Polyamide

Cable Tie

6шт.

14

84300177

HOSE ASSY.

Priority Tank

1шт.

15

892-11010

LOCK WASHER,M10

4шт.

16

84256618

HEX SOC SCREW

4шт.

17

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

1шт.

18

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Inc. 19, 20

1шт.

19

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

20

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

Boss End

1шт.

21

84243173

HYD TUBE

Pump To Manifold Also Order # 22

1шт.

22

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

1шт.
