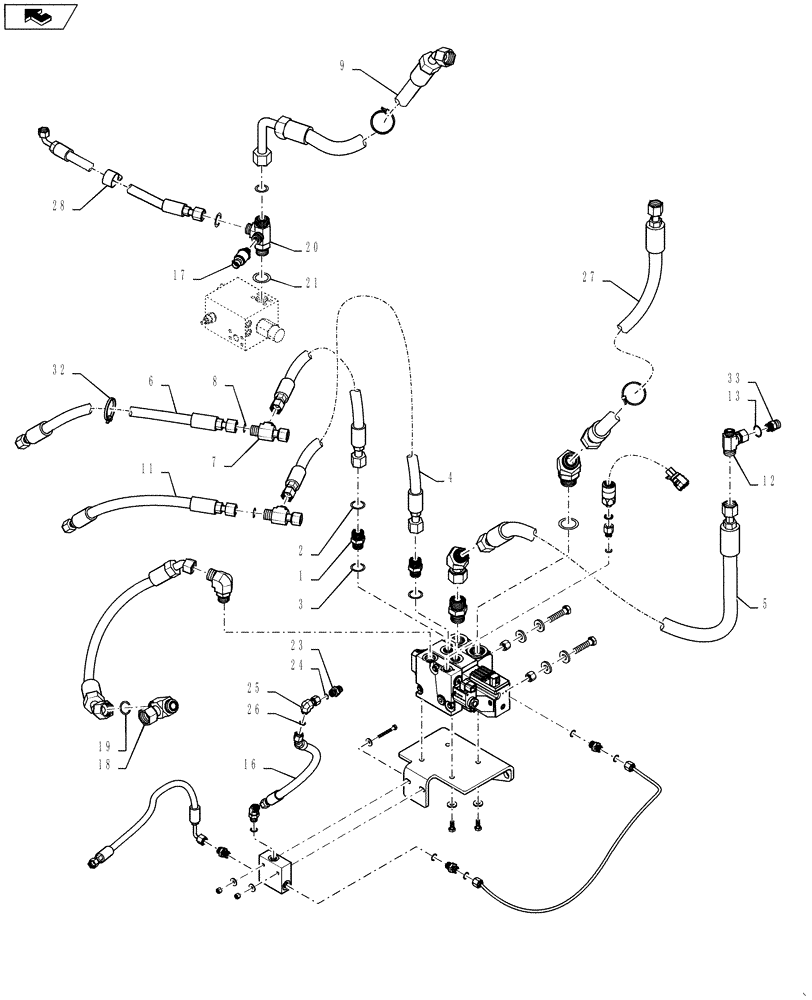

Запчасти Case 921F (41.200.06[02]) - JOYSTICK STEERING, HYDRAULICS (41) - STEERING

1

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

Inc.2-3

2шт.

2

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

3

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

4

84165884

HOSE ASSY.

Steering Cyclinder Pressure

2шт.

5

84166698

HOSE ASSY.

Valve Suction, 821F Standard Steering

1шт.

5

84248688

HOSE ASSY.

Valve Suction, 821F Auxiliary Steering

1шт.

5

84248670

HOSE ASSY.

Valve Suction, 921F Standard Steering

1шт.

5

84197903

HOSE

Valve Suction, 921F Auxiliary Steering

1шт.

6

87754534

HOSE ASSY.

Right Side Base

1шт.

7

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Inc. 8

4шт.

8

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

9

84217328

HOSE ASSY.

Steering Return

1шт.

10

84147675

HYDRAULIC HOSE

Steering Supply, 821F

1шт.

10

84257991

HOSE ASSY.

Steering Supply, 921F

1шт.

11

87754535

HOSE ASSY.

Right Hand Rod

1шт.

12

84989850

3 WAY CONNECTION

Inc. 13, 821F Only

1шт.

13

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

14

87328818

TEE

Inc. 15

1шт.

15

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

16

84217329

HOSE ASSY.

Bleeding Line

1шт.

17

87363483

SENDER UNIT

Pressure Transmitter

1шт.

18

84989848

TEE,11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 JIC

UNION, Tee Inc 19

1шт.

19

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

20

84217267

UNION TEE

Inc. 22

1шт.

21

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

22

84248668

HOSE ASSY.

Load Sense 921F Only

1шт.

23

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Inc 24, 921F Only

1шт.

24

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

921F Only

1шт.

25

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Inc 26, 921F Only

1шт.

26

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

921F Only

1шт.

27

84165268

HOSE ASSY.

Hose To Tank 821F, Standard Steering, 921F Auxiliary Steering

1шт.

27

84248688

HOSE ASSY.

Hose To Tank 821F ,Auxiliary Steering

1шт.

27

84248687

HOSE ASSY.

Hose To Tank 921F, Standard Steering

1шт.

28

515-24317

CLAMP,1 1/4", Insul, 7/16" Bolt

921F Only

1шт.

29

84327040

ELBOW

Inc. 30-31, 921F Only

1шт.

30

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

31

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

32

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

6шт.

33

87534063

CHECK VALVE,1-3/16" - 12 ORFS x M27 x 2 ORB

Inc. 34-35, 921F Only

1шт.

34

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

35

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

36

84432241

90 ELBOW,90 Degree, 9/16"-18 ORFS x M14 x 1.5 ORB

Auxiliary Steering Inc 37-38

1шт.

37

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

38

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.
