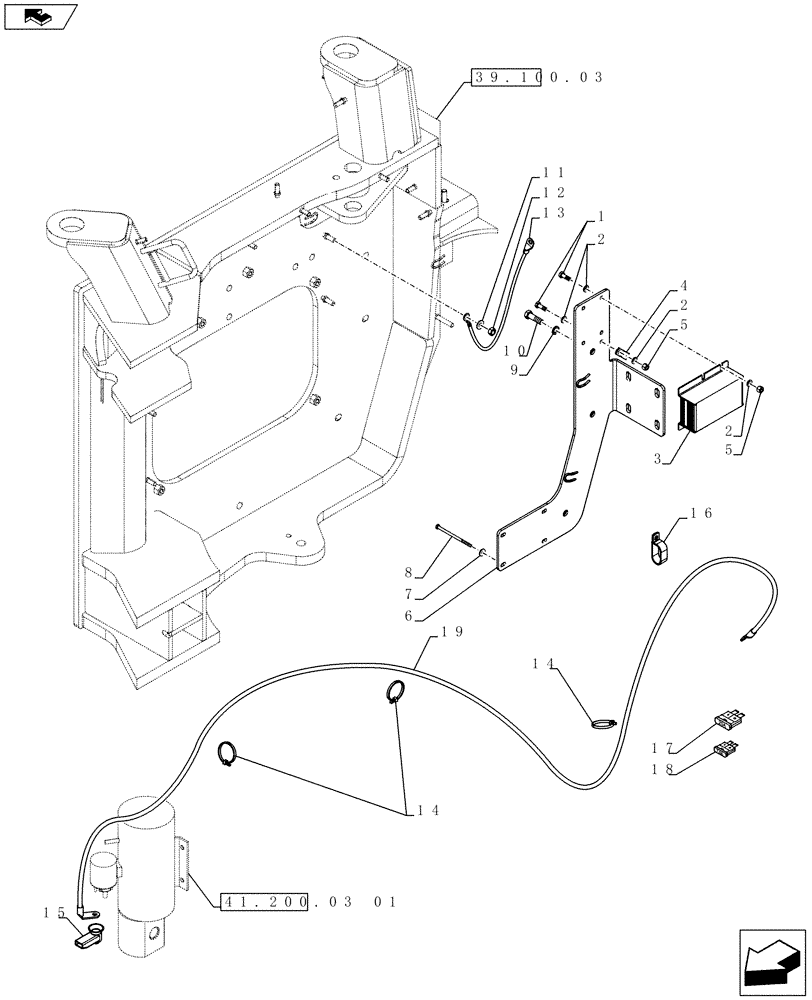

Запчасти Case 921F (41.200.03[02]) - STEERING AUXILIARY, ELECTRICAL (41) - STEERING

1

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

5шт.

2

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

10шт.

3

8603171

MODULE

Secondary Steering

1шт.

4

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

6

87346069

BRACKET

Auxiliary Steering

1шт.

7

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

8

814-6110

BOLT,Hex, M6 x 1 x 110mm, Cl 8.8

4шт.

9

895-18012

WASHER,13.5mm ID x 20mm OD x 2mm Thk

3шт.

10

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

3шт.

11

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

2шт.

12

253347A1

NUT,Hex, M10 x 1.5

2шт.

13

L129707

NEG BATTERY CABLE

1шт.

14

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP 7-8' Black

7шт.

15

L126713

BOOT

Electrical

1шт.

16

9603626

CLAMP

2шт.

17

87327335

FUSE,20 Amp

20 Amp, 32 Volt

1шт.

18

121411A1

FUSE,7.5A, Mini, Brown

1шт.

19

87358691

CABLE,3256mm L

Auxiliary Steering

1шт.
