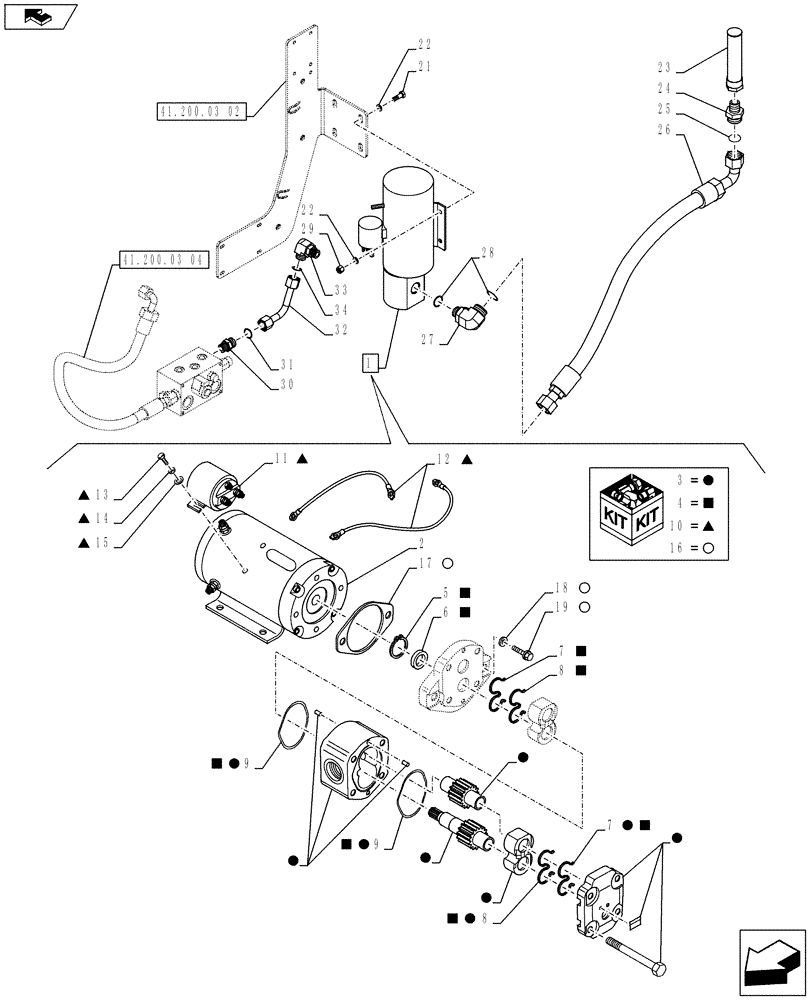

Запчасти Case 921F (41.200.03[01]) - STEERING AUXILIARY, PUMP (41) - STEERING

1

87581480

ELECTRIC PUMP

PUMP, Auxillary Steering, Incl. 1 - 16

1шт.

2

87581481

ELECTRIC MOTOR

DC

1шт.

3

8605158

PUMP, HYDRAULIC

1шт.

8605158R

REMAN-HYD PUMP

821F TIER 4 , 921F TIER 4

1шт.

8605158C

CORE-HYDRAULIC PUMP

Return Number

1шт.

4

8605163

SEAL KIT

Incl. 5-9

1шт.

5

NSS

NOT SOLD SEPARAT

Ring, Retaining

1шт.

6

NSS

NOT SOLD SEPARAT

Seal

1шт.

7

NSS

NOT SOLD SEPARAT

Ring, Backup

2шт.

8

NSS

NOT SOLD SEPARAT

Seal

2шт.

9

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

10

8605159

KIT

Starting Switch; Incl. 11-15

1шт.

11

NSS

NOT SOLD SEPARAT

Switch

1шт.

12

NSS

NOT SOLD SEPARAT

Cable

1шт.

13

NSS

NOT SOLD SEPARAT

Screw

2шт.

14

NSS

NOT SOLD SEPARAT

Washer, Lock

2шт.

15

NSS

NOT SOLD SEPARAT

Washer

2шт.

16

8605160

KIT

Mounting; Incl. 17-19

1шт.

17

NSS

NOT SOLD SEPARAT

Gasket, Mounting

1шт.

18

NSS

NOT SOLD SEPARAT

Washer, Lock

2шт.

19

NSS

NOT SOLD SEPARAT

Screw

2шт.

20

8605161

WIRE

Primary

1шт.

21

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

22

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

8шт.

23

L129303

FILTER SCREEN

Hydraulic Tank

1шт.

24

87433494

HYD CONNECTOR

Straight

1шт.

25

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

26

87592638

HOSE ASSY.

Auxiliary Suction

1шт.

27

700-313

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

1шт.

28

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

29

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

30

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

1шт.

31

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

32

87591383

TUBE,13.11 mm ID x 15.88 mm OD x 98.8, 80.9 mm L

Auxiliary Pressure

1шт.

33

700-306

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

1шт.

34

14438085

O-RING,19.3mm ID x 2.4mm

1шт.
