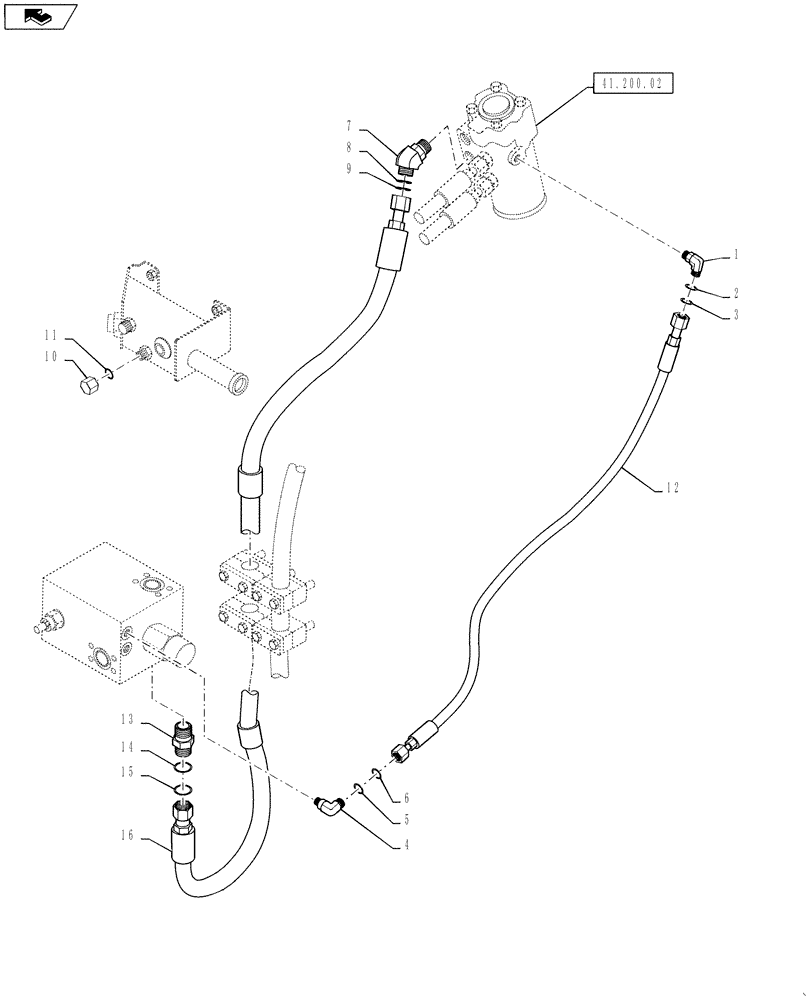

Запчасти Case 921F (41.200.01[01]) - STEERING - HYDRAULICS (41) - STEERING

1

700-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

Incl. 2-3 821F Only

1шт.

1

84327040

ELBOW

921 F Only

1шт.

2

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

3

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

4

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl. 5-6 821F Only

1шт.

4

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Inc. 5-6 921F Only

1шт.

5

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

6

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

7

700-316

ELBOW,45 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl.8-9

1шт.

8

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

9

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

10

701-906

CAP,1" - 14

Incl. 11

1шт.

11

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

12

87519867

HOSE ASSY.

Load Sense, 939mm (37 in) 821F Only

1шт.

12

84243189

HOSE ASSY.

Load Sense, 921F Only

1шт.

13

87534063

CHECK VALVE,1-3/16" - 12 ORFS x M27 x 2 ORB

Incl. 14-15

1шт.

14

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

15

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

16

87617166

HOSE ASSY.

Pressure, 1411mm ( 55-1/2 in ); 821F Only

1шт.

16

84257991

HOSE ASSY.

Pressure, 921F Only

1шт.
