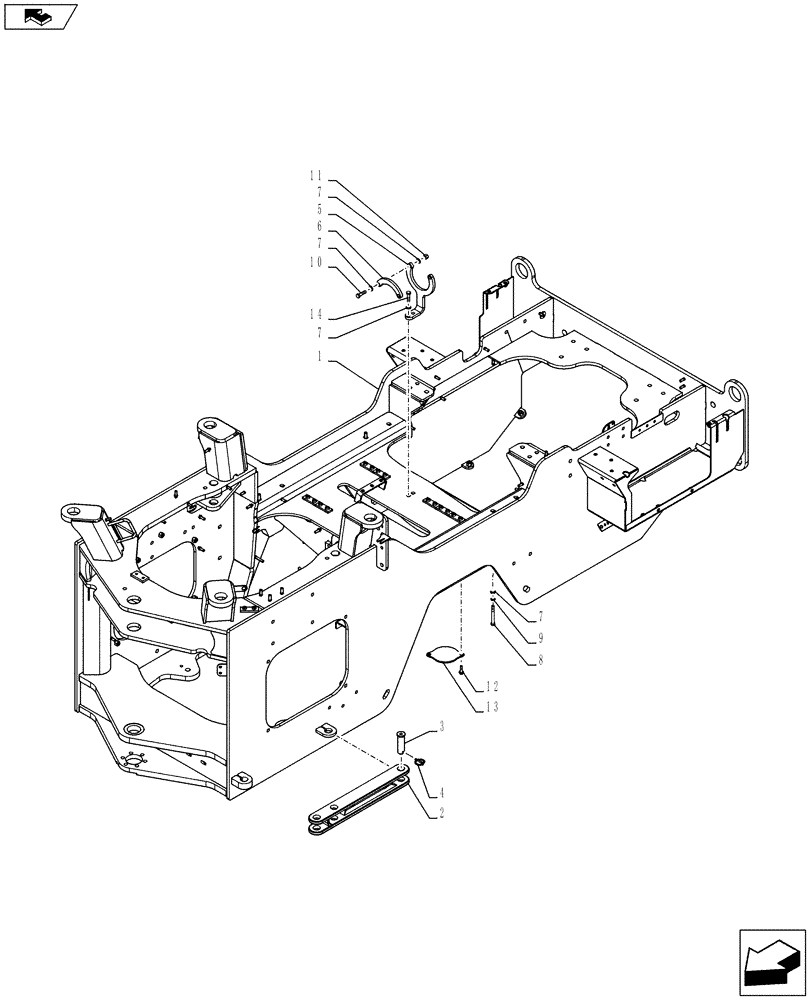

Запчасти Case 921F (39.100.03) - REAR CHASSIS (39) - FRAMES AND BALLASTING

1

84300971

FRAME

Rear Chassis, 821F Only

1шт.

1

84300974

FRAME

Rear Chassis, 921F Only

1шт.

2

412067A1

LOCKING BAR

Articulation

1шт.

3

126268A1

PIN,31.8mm OD x 108mm L

Articulation Lock

2шт.

4

A30338

PIN

Klink

2шт.

5

84238373

GUARD

Drive Shaft

1шт.

6

87333866

GUARD

Drive Shaft Top

1шт.

7

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

10шт.

8

827-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

4шт.

9

892-11012

LOCK WASHER,M12

4шт.

10

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.

11

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

12

84260723

COVER PLATE

Tank Drain

1шт.

13

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

2шт.

14

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.
