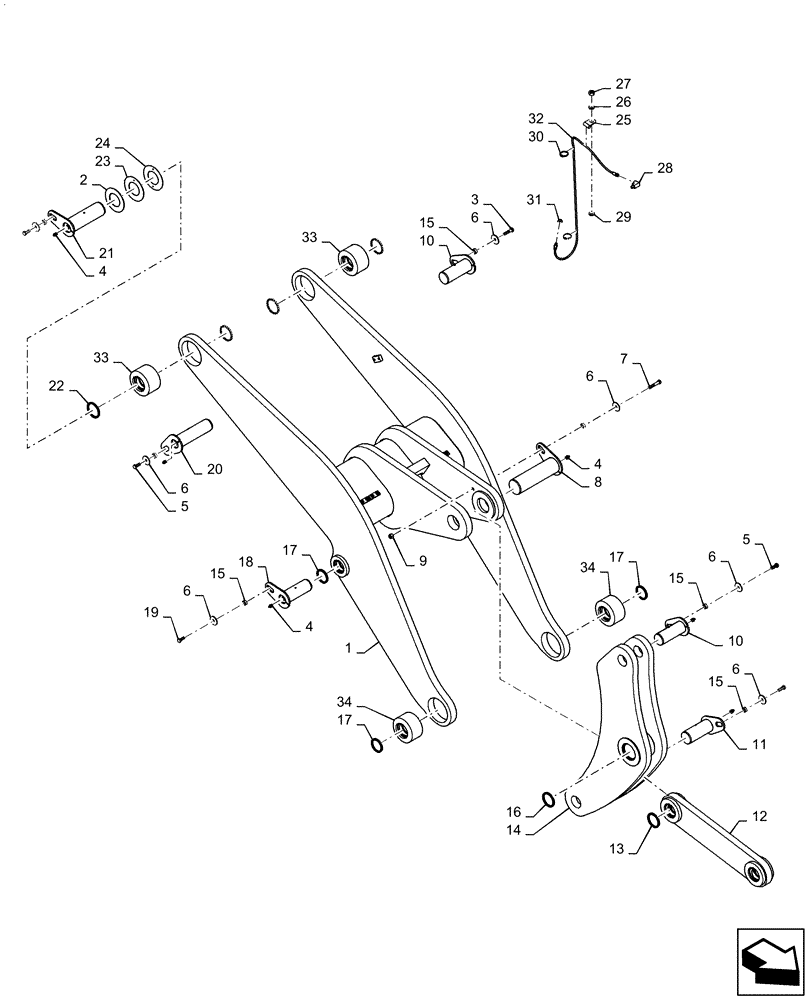

Запчасти Case 921F (39.100.01) - ARM LIFT Z BAR AND XR/LR (39) - FRAMES AND BALLASTING

1

87378056

LIFT ARM

Z-Bar, 821F Only

1шт.

1

87741107

LIFT ARM

XR/LR, 821F Only

1шт.

1

84259134

LIFT ARM

Z-Bar, 921F Only

1шт.

1

84383479

LIFT ARM

XR/LR, 921 Only

1шт.

2

105917A1

WASHER,98mm ID x 176mm OD x 3.5mm Thk

Dump Link

1шт.

3

827-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

1шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

9шт.

5

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

6шт.

6

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

10шт.

7

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

1шт.

8

87308504

PIN,107.95mm OD x 375.5mm L

Bellcrank, 821F Only

1шт.

8

84327609

PIN

Bellcrank, 921F Only

1шт.

9

832-10416

NUT,M16 x 2, Cl 8

1шт.

10

87308973

PIN

Dump Link, 821F Only

2шт.

10

84327612

PIN

Dump Link, 921F Only

1шт.

11

87308980

AXLE PIN

Dump Link, 821F Only

1шт.

11

84327612

PIN

Dump Link, 921F Only

1шт.

12

84231696

LINK CONROD

Dump linkage Rod, For Bushing See 35

1шт.

13

S92653

WIPER

Rod 88.9

4шт.

14

87305879

BELLCRANK

821F Only, For Bushing See 36

1шт.

14

84259127

BELLCRANK

921F Only

1шт.

15

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

Plated

10шт.

16

87308559

SEAL

Wiper Rod 107.95, 821F Only

2шт.

16

84238525

SEALING RING

SEALRING Wiper Rod 114.3, 921F Only

2шт.

17

365523A1

WIPER SEAL

Wiper Rod 82.5

8шт.

18

87308951

PIN,82.5mm OD x 230mm L

Lift Cylinder, For Bushing Order 87613433

2шт.

19

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

20

87308899

PIN

Lift Cylinder Chassis

2шт.

21

87308438

PIN

Lift Arm

2шт.

22

86982500

SEAL,95.12mm ID x 111.15mm OD x 9.77mm Thk

Wiper Rod 95.3

4шт.

23

87308470

WASHER

Hardened 1.6 Thick (Unfinished)

1шт.

24

87308469

WASHER

Hardened 2.4 Thick (Unfinished)

1шт.

25

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

26

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

821F Only

1шт.

27

832-10410

NUT,M10 x 1.5, Cl 8

821F Only

1шт.

28

328082A1

ELBOW

90 degree

1шт.

29

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

821F Only

1шт.

30

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

3шт.

31

F53473

LOCK NUT,1/8-27 NPSM

1шт.

32

318012A1

FLEXIBLE HOSE

1шт.

33

87613437

BUSHING,95.57mm ID x 111.23mm OD x 79mm L

Z-Bar Only

2шт.

33

87732183

BUSHING

X/R and L/R Only

2шт.

34

87613433

BUSHING,82.86mm ID x 98.53mm OD x 79mm L

Z-Bar Only

2шт.

34

87732565

BUSHING,82.86mm ID x 98.53mm OD x 91mm L

x/R and L/R Only

2шт.

35

87613434

BUSHING,89.22mm ID x 104.88mm OD x 79mm L

2шт.

36

87613438

BUSHING,108.27mm ID x 123.93mm OD x 84.8mm L

2шт.
