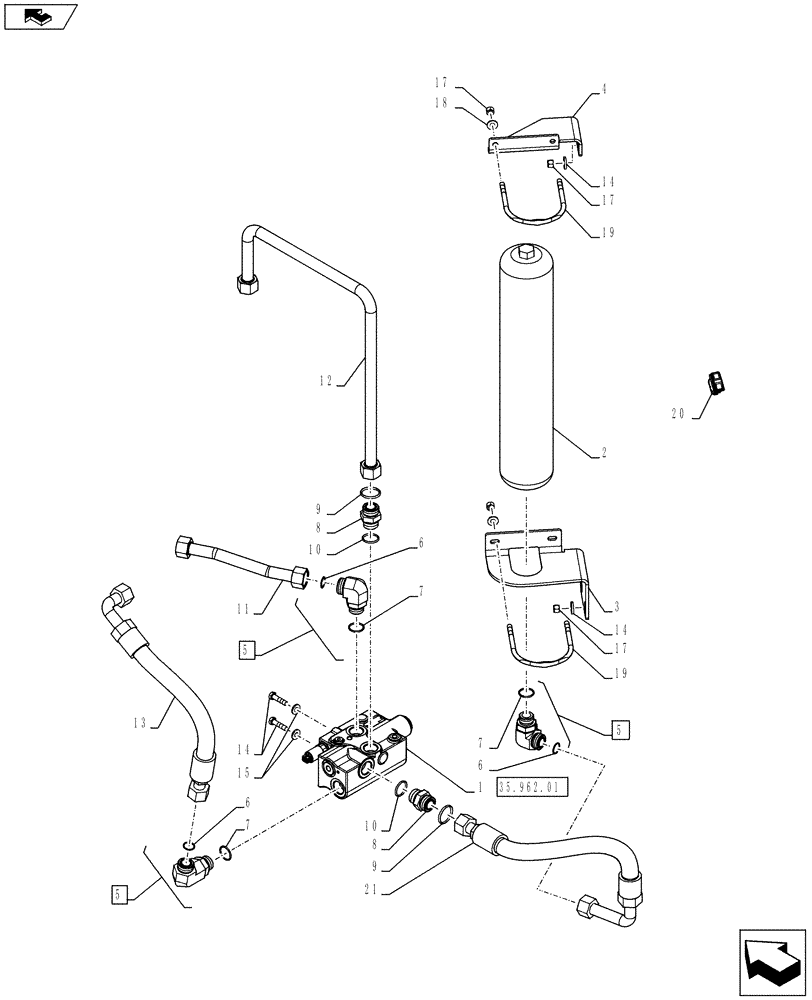

Запчасти Case 921F (35.962.02) - RIDE CONTROL VALVE INSTALLATION (35) - HYDRAULIC SYSTEMS

1

87527217

VALVE

Ride Control, Ref. 35.962.01

1шт.

2

87393434

ACCUMULATOR,3.8L

Ride Control, Black

1шт.

3

84350665

BRACKET, SUPPORTING

Accumulator

1шт.

4

87529280

BRACKET

Accumulator

1шт.

5

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 6-7

3шт.

6

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

7

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

3шт.

8

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 9-10

2шт.

9

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

10

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

11

87534055

TUBE,25 mm OD x 278 mm L

Ride Control

1шт.

12

87534057

TUBE,1" OD

Ride Control

1шт.

13

87339303

HOSE ASSY.

Ride Control Tank

1шт.

14

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

6шт.

15

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

16

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

17

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

18

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

19

87492028

U-BOLT

2шт.

20

87350055

SWITCH

1шт.

21

87529288

HOSE ASSY.

Ride Control Accumulator

1шт.
