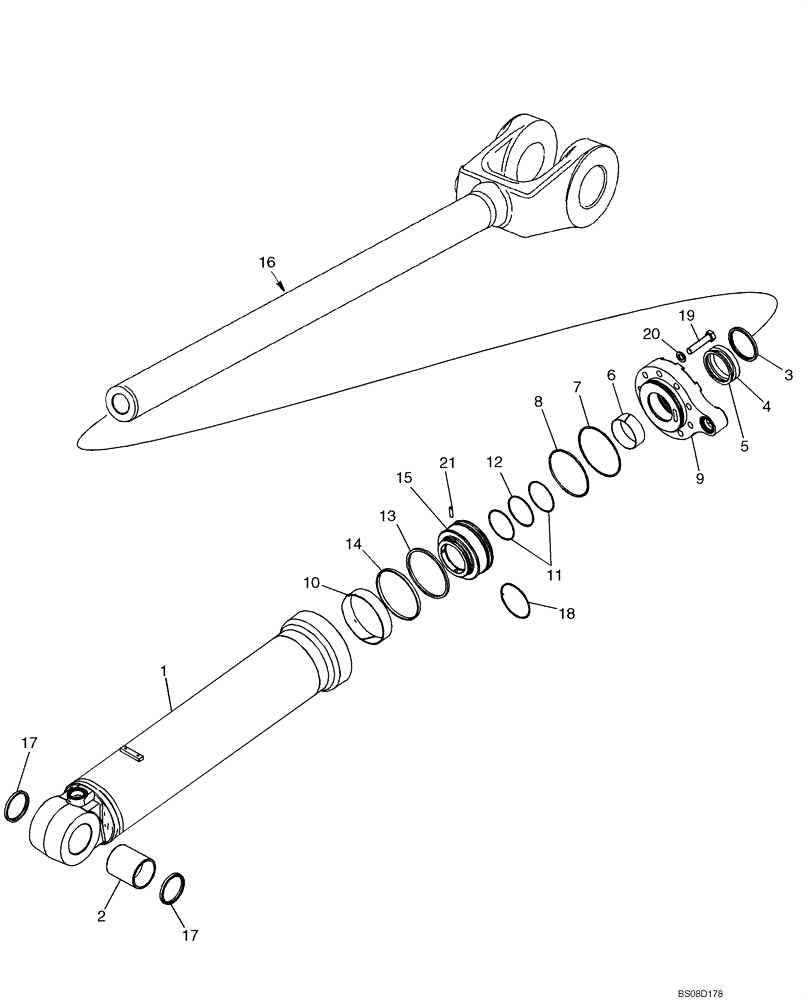

Запчасти Case 921F (35.901.09) - LIFT CYLINDER ASSEMBLY 921F (35) - HYDRAULIC SYSTEMS

84251978

HYDRAULIC CYLINDER,Double Acting, 88.9mm Rod, 845.7mm Stroke

Loader Lift; Incl. Refs. 1 - 21 Case Power Tan

2шт.

84515282

SEAL KIT

Incl. Refs 3 - 8, 10 - 14

1шт.

1

NSS

NOT SOLD SEPARAT

Tube Weldment; Incl. Ref. 2

1шт.

2

87625612

BUSHING,82.86mm ID x 98.53mm OD x 36mm L

2шт.

84251961

Incl. Refs. 3 - 9 Gland Assy

1шт.

3

S92653

WIPER

Wiper, Rod; 101.6

1шт.

1542882C1

STRIPPER PACKAGE

Rod and Buffer Seals; Incl. Refs. 4, 5

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL, ROD

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL, BUFFER

1шт.

6

G110677

HYD CYL SLEEVE

Rod Bearing

1шт.

7

G109034

BACK-UP RING,135.94mm ID x 145.08mm OD x 1.93mm Thk

Backup Ring

1шт.

8

238-5356

O-RING,0.21" Thk x 5.375" ID, -356, Cl 5, 75 Duro

1шт.

9

84251960

GLAND

GLAND, Order Assy. 84251961

1шт.

84299212

Incl. Ref. 10 - 15

1шт.

10

84297270

WEAR RING

1шт.

11

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

1шт.

12

238-5238

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

1шт.

13

G109034

BACK-UP RING,135.94mm ID x 145.08mm OD x 1.93mm Thk

Ring

1шт.

14

84294494

SEAL,140.13mm ID x 152.4mm OD x 14.7mm Thk

Piston

1шт.

15

84299211

PISTON

88.9; 50.8 Rod

1шт.

16

NSS

NOT SOLD SEPARAT

1шт.

17

L128529

SEAL,95.2mm ID x 107.9mm OD x 8.3mm Thk

3-3/4 in Pin

2шт.

18

1980390C1

RING, SNAP

RING SNAP Retaining Ring

1шт.

19

827-20090

BOLT,Hex, M20 x 2.5 x 90mm, Cl 10.9

9шт.

20

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

Flat

9шт.

21

G106602

LOCK PIN

Locking

1шт.
