Запчасти Case 921F (35.901.07) - TILT CYLINDER ASSEMBLY, Z BAR LOADER 921F (35) - HYDRAULIC SYSTEMS

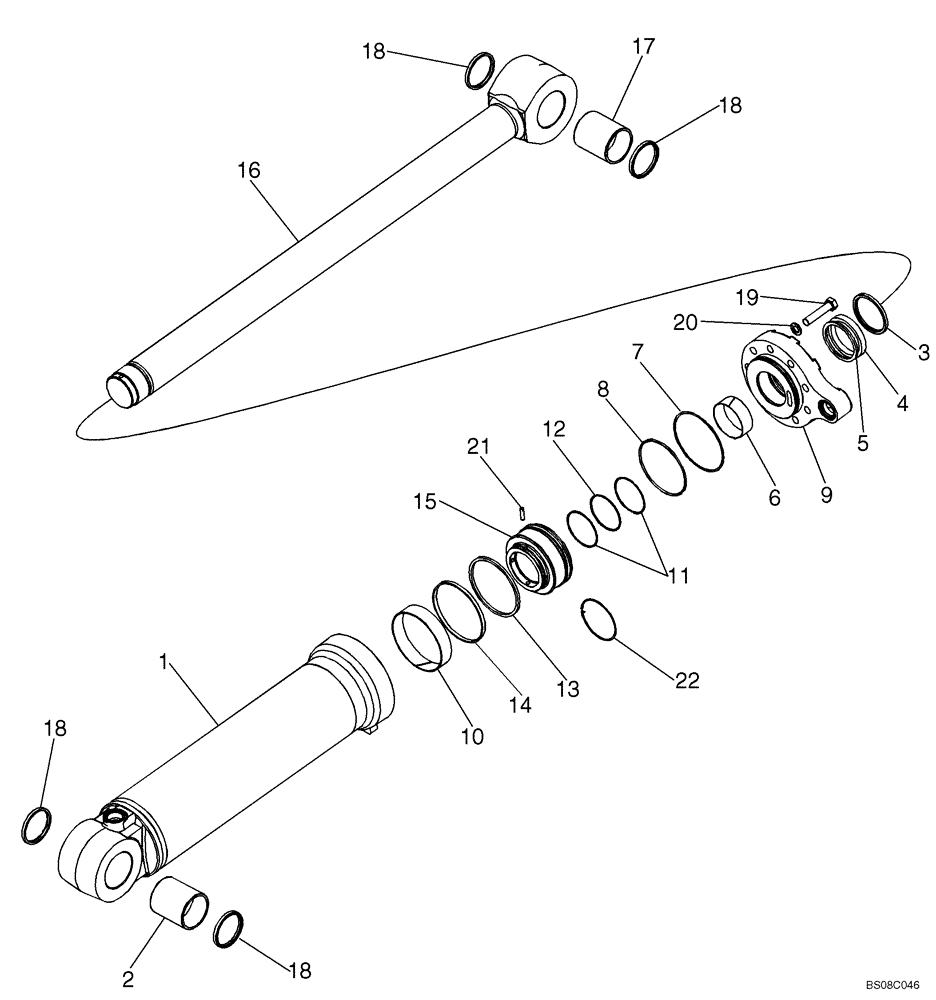

Схема запчастей Case 921F - (35.901.07) - TILT CYLINDER ASSEMBLY, Z BAR LOADER 921F (35) - HYDRAULIC SYSTEMS
18
20
9
22
16
15
18
8
10
1
14
18
3
7
11
19
18
17
5
2
13
4
6

Артикул

Название

Примечание

Количество

84327736

CYLINDER,Double Acting, 101.6mm Rod, 600mm Stroke

Z- Bar Tilt Assy Cylinder Incl. Refs. 1A - 22

1шт.

84327732

KIT

Z-Bar Bucket Cylinder; Incl. Refs. 3 - 8, 10 - 14, 18

1шт.

1

NSS

NOT SOLD SEPARAT

Tube Weldment, W/ Side Bracket for RTD Harness Guard; No Longer Available, Order Tube 87700018 and RTD Prox. Switch Cover 87403966

1шт.

2

84264085

BUSHING,89.19mm ID x 104.87mm OD x 52mm L

Replaces L127807

2шт.

NSS

NOT SOLD SEPARAT

Incl. Refs. 3 - 9

1шт.

3

S108245

WIPER SEAL

Wiper, Rod

1шт.

1542883C1

SEAL KIT

Rod and Buffer Seals; Incl. Refs. 4 , 5

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL, ROD

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL, BUFFER

1шт.

6

1346213C1

BUSHING

Bearing Rod

1шт.

7

G110679

RING,164.52mm ID x 173.66mm OD x 1.9mm Thk

Backup

1шт.

8

238-5362

O-RING,0.21" Thk x 6.225" ID, -362, Cl 5, 75 Duro

1шт.

9

NSS

NOT SOLD SEPARAT

GLAND, Order Assembly 87349594

1шт.

NSS

NOT SOLD SEPARAT

Incl. Refs. 10 - 15

1шт.

10

84297271

WEAR RING

177.8 Dia.

1шт.

11

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

2шт.

12

238-5242

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

1шт.

13

S110156

SEALING RING,6.86mm Thk x 157.86mm ID

Ring

1шт.

14

84294495

SEAL,159.18mm ID x 177.8mm OD x 19.05mm Thk

Piston

1шт.

15

NSS

NOT SOLD SEPARAT

PISTON

1шт.

16

NSS

NOT SOLD SEPARAT

1шт.

17

84264085

BUSHING,89.19mm ID x 104.87mm OD x 52mm L

2шт.

18

S92653

WIPER

4шт.

19

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

9шт.

20

G106602

LOCK PIN

Locking

1шт.

21

1346328C1

CIRCLIP

1шт.

Выбрано товаров: 26
