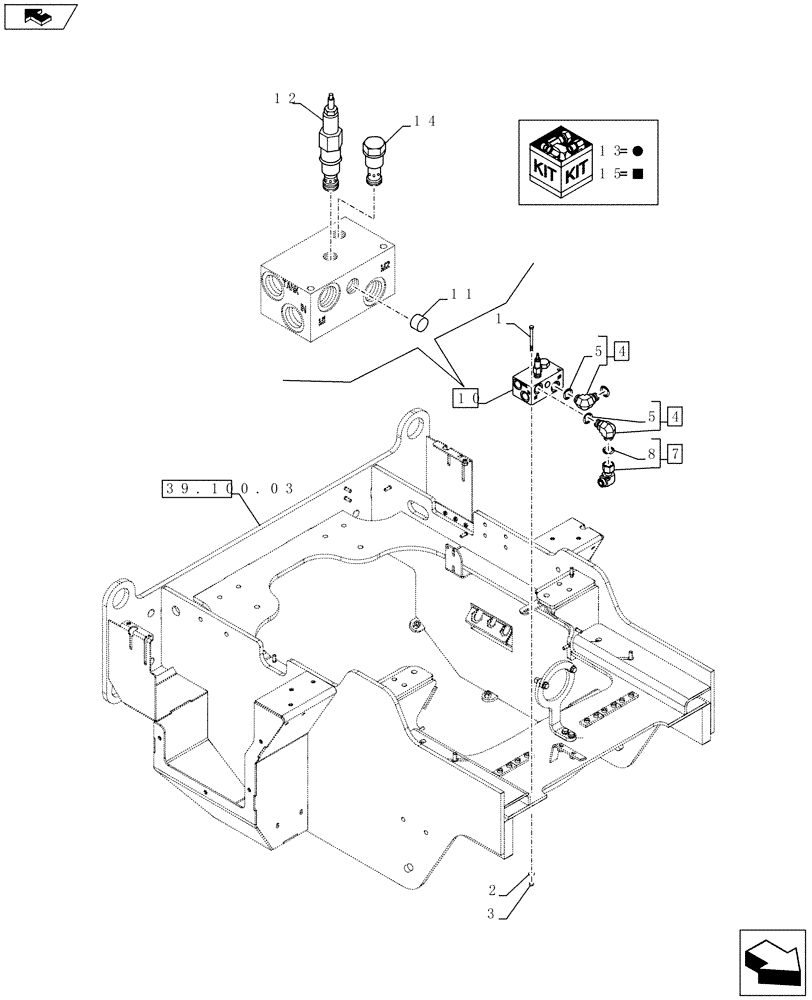

Запчасти Case 921F (35.752.02) - COOLING FAN RELIEF VALVE INSTALLTION (35) - HYDRAULIC SYSTEMS

1

827-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

2шт.

2

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

3

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

4

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Inc. 5-6

2шт.

5

70923843

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

6

78100371

FITTING

Assembly

1шт.

7

701-342

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Female ORFS

Inc. 8-9

1шт.

8

70923843

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

9

78100304

HYD CONNECTOR

FITTING, Assembly

1шт.

10

8500562

HYDRAULIC VALVE

Fan Relief, Inc 11-15

1шт.

11

218-5209

PLUG,Hex, 9/16"-18 ORB

9шт.

12

8605070

VALVE PRESSURE RELIE

Inc. 13

1шт.

13

1542830C2

SEAL KIT

1шт.

14

8605073

VALVE, CHECK

Inc. 15

1шт.

15

1542830C2

SEAL KIT

1шт.
