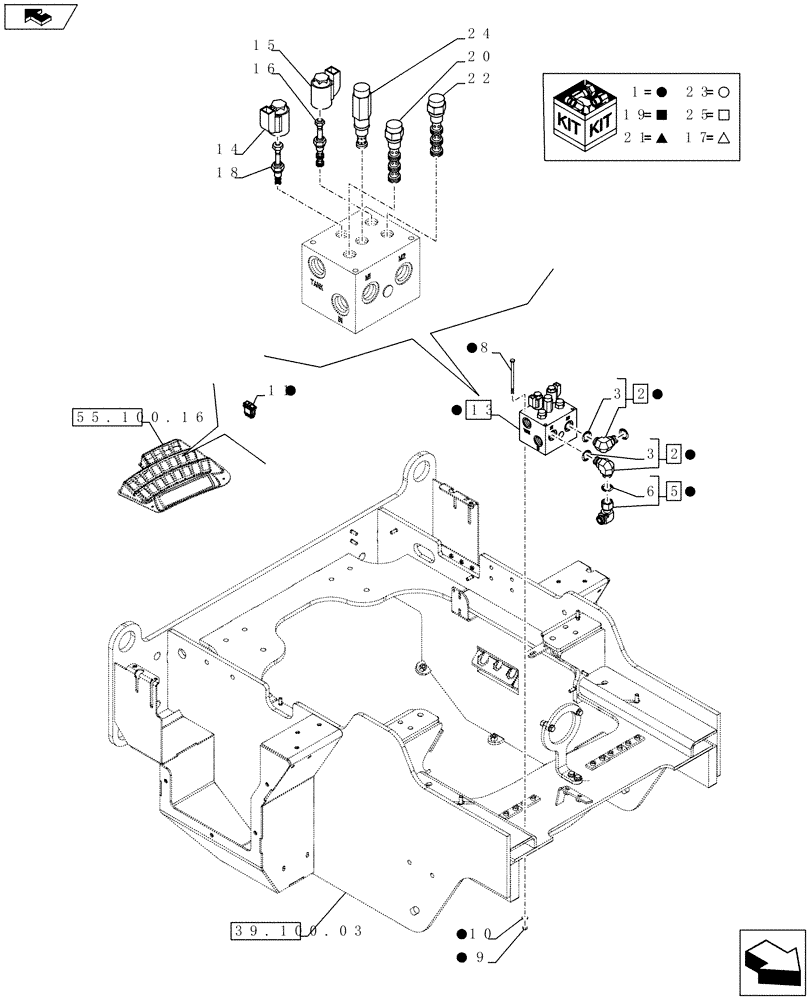

Запчасти Case 921F (35.752.01) - VALVE,FAN VARIABLE SPEED AND REVERSER (35) - HYDRAULIC SYSTEMS

2

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Inc. 3-4

2шт.

3

70923843

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

4

78100371

FITTING

Assembly (Not Shown)

1шт.

5

701-342

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Female ORFS

Inc. 6-7

1шт.

6

70923843

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

7

78100304

HYD CONNECTOR

FITTING, Assembly (Not Shown)

1шт.

8

814-8140

BOLT,Hex, M8 x 1.25 x 140mm, Cl 8.8

3шт.

9

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

10

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

11

87350049

SWITCH

Rocker, Fan Control

1шт.

12

87312626

RELAY,24V

(Not Shown)

1шт.

13

8500565

HYDRAULIC VALVE

Fan Speed and Reverser Inc. 14-25

1шт.

14

87617169

COIL

Fan Valve

1шт.

15

87617170

COIL

Fan Valve

1шт.

16

8605066

VALVE PRESSURE RELIE

1шт.

17

87617168

SEAL KIT

For Item 16

1шт.

18

8605062

SOLENOID VALVE

EF Electric Proportional

1шт.

19

1542830C2

SEAL KIT

For Item 18

1шт.

20

8605059

PILOT VALVE

Directional

1шт.

21

388744A1

SEAL KIT

For Item 20

1шт.

22

8605056

PILOT VALVE

Directiional

1шт.

23

388744A1

SEAL KIT

For Item 22

1шт.

24

8605053

VALVE PRESSURE RELIE

Bi-Directional

1шт.

25

1542833C1

SEAL KIT

For Item 24

1шт.
