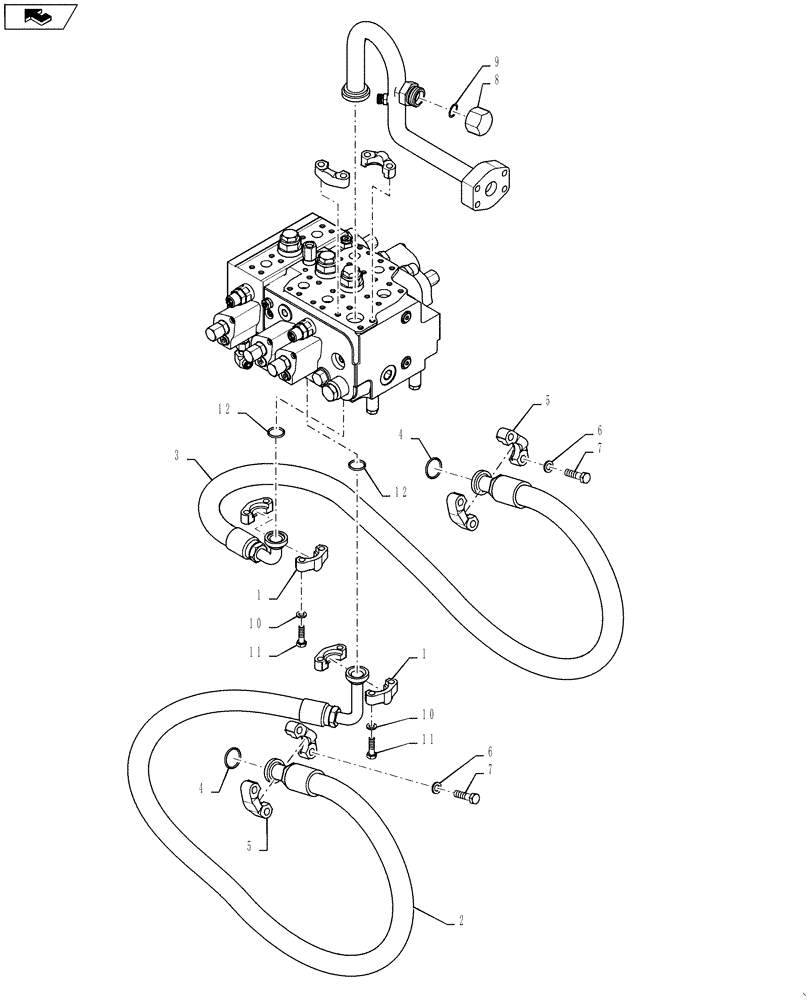

Запчасти Case 921F (35.310.04) - NON-RIDE CONTROL LINE INSTALLATION 921F, Z-BAR (35) - HYDRAULIC SYSTEMS

1

86980731

CLAMP

Split Flange

4шт.

2

84257978

HOSE ASSY.

Right Hand Lift Cyclinder Base

1шт.

3

84258000

HOSE ASSY.

Left Hand Lift Cyclinder Base

1шт.

4

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

2шт.

5

86980732

CLAMP

Split Flange

4шт.

6

892-11012

LOCK WASHER,M12

8шт.

7

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

8шт.

8

701-901

CAP,1-7/16" - 12

1шт.

9

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

10

892-11010

LOCK WASHER,M10

8шт.

11

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

8шт.

12

238-6214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

2шт.
