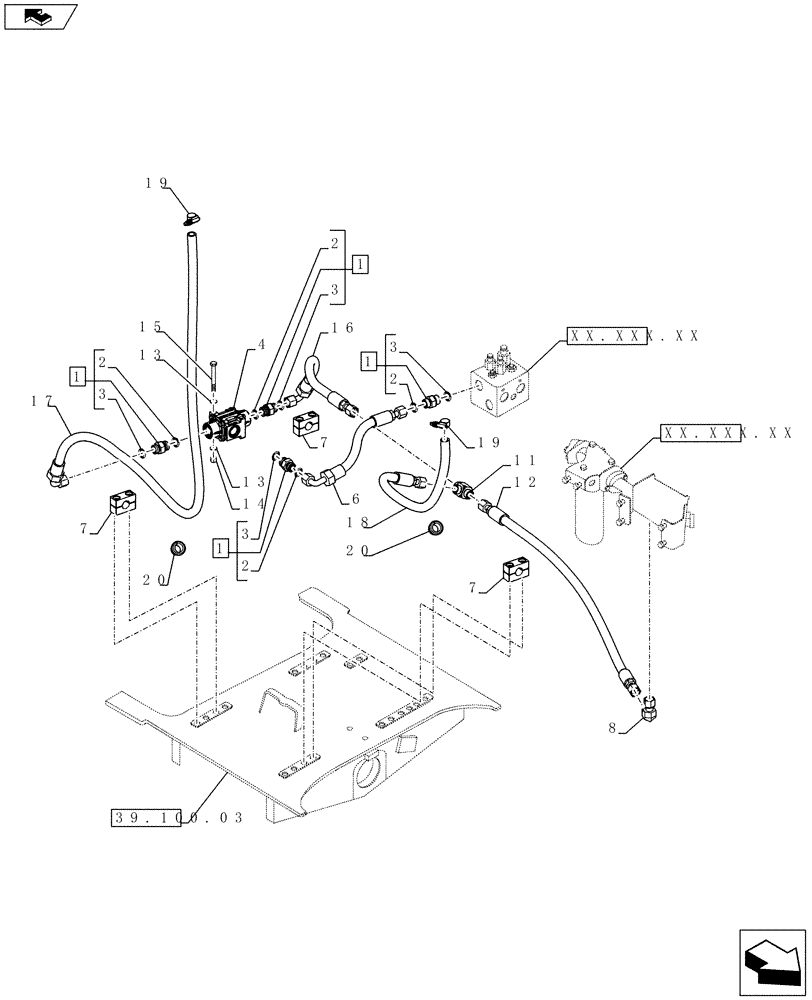

Запчасти Case 921F (35.310.03) - THERMAL BYPASS VALVE INSTALLATION (35) - HYDRAULIC SYSTEMS

1

86597760

HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB

Inc. 2-3

4шт.

2

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

3

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

4

87326981

BY-PASS VALVE

No Parts Breakdown Inc. 5

1шт.

5

87328377

REPAIR KIT

1шт.

6

87617171

HOSE ASSY.

Fan To Bypass

1шт.

7

367489A1

BLOCK

Tube Mounting

3шт.

8

701-361

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Female ORFS

Inc. 9-10

1шт.

9

78100303

SEAL

(Not Shown)

1шт.

10

A14157

FLANGE

Split (Not Shown)

1шт.

11

701-415

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Male ORFS

1шт.

12

87453786

FLEXIBLE HOSE

Junction To Filter

1шт.

13

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

14

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

15

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

2шт.

16

87453784

FLEXIBLE HOSE

Bypass To Junction

1шт.

17

84337098

HOSE ASSY.

HOSE, Bypass To Cooler

1шт.

18

84337099

HOSE ASSY.

HOSE, Cooler To Junction

1шт.

19

328186A1

HOSE CLAMP

2шт.

20

198828C1

GROMMET,25.4mm ID x 41.1mm OD x 26.9mm Thk

2шт.
