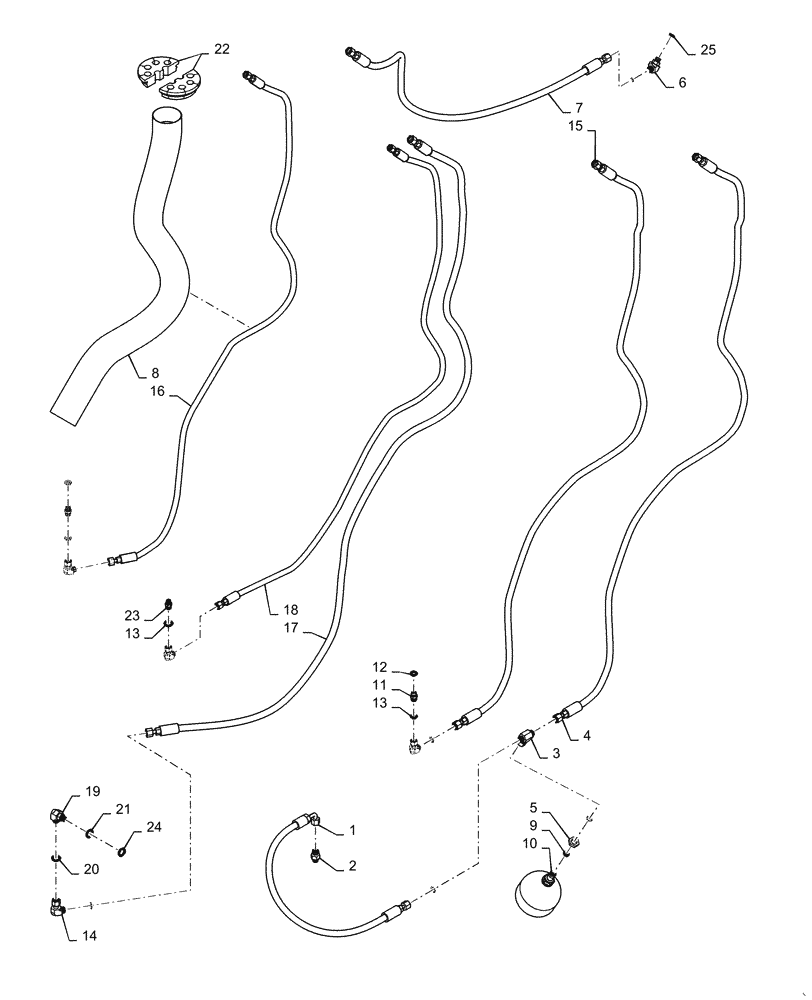

Запчасти Case 921F (35.160.01) - LOADER CONTROL LINE INSTALLATION (35) - HYDRAULIC SYSTEMS

1

87351223

HOSE ASSY.

Pilot Accumulator

1шт.

2

391859A1

VALVE, CHECK

1шт.

3

701-434

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

1шт.

4

87351234

HOSE ASSY.

Pilot Pressure

1шт.

5

701-909

NUT,11/16" - 16

1шт.

6

700-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

1шт.

7

87351224

HOSE ASSY.

Pilot Tank

1шт.

8

87333783

HOSE PROTECTION,80.00 mm ID x 1254.00 mm

Sleeve

1шт.

9

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

10

8501047

ACCUMULATOR

Pilot Supply

1шт.

11

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

2шт.

12

70924048

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

13

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

14

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

4шт.

15

87351232

HOSE ASSY.

Pilot Lower

1шт.

16

87351229

HOSE ASSY.

Pilot Dump

1шт.

17

87351230

HOSE ASSY.

Pilot Raise

1шт.

18

87351231

HOSE ASSY.

Pilot Rollback

1шт.

19

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

1шт.

20

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

21

70924048

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

22

232388A1

GROMMET

Hose Mounting

2шт.

23

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

1шт.

24

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

6шт.

25

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.
