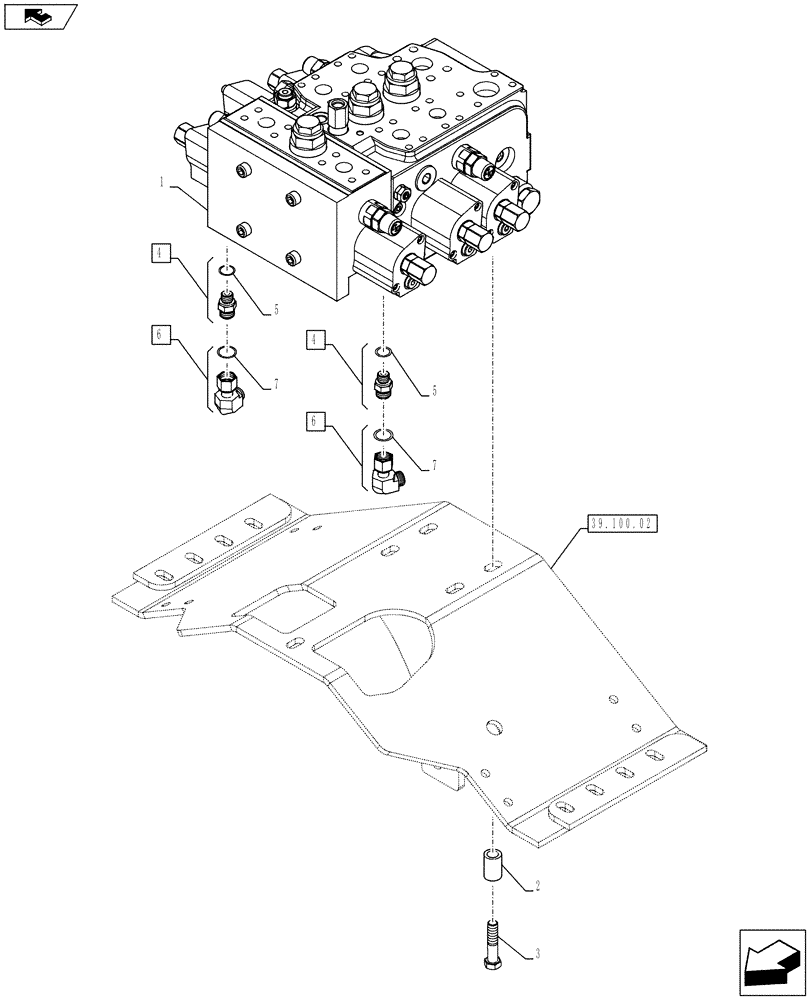

Запчасти Case 921F (35.114.01) - CONTROL VALVE MOUNTING, TWO & THREE SPOOL (Z-BAR LOADER) (35) - HYDRAULIC SYSTEMS

1

87539282

VALVE

Three Spool; Z-Bar Loader Valve 821F

1шт.

1

87539278

VALVE

Two Spool; Z-Bar Loader Valve 821F

1шт.

1

84240719

VALVE

Three Spool; Z-Bar Loader Valve 921F

1шт.

1

84240716

VALVE

Two Spool; Z-Bar Loader Valve 921F

1шт.

2

A27328

SPACER

3шт.

3

827-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

3шт.

4

86579671

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORB

CONNECTOR, Inc. 5, 3 Spool Valve Only

2шт.

5

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3 Spool Valve Only

2шт.

6

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

3 Spool Valve, 921F Only, Inc. 7

2шт.

7

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.
