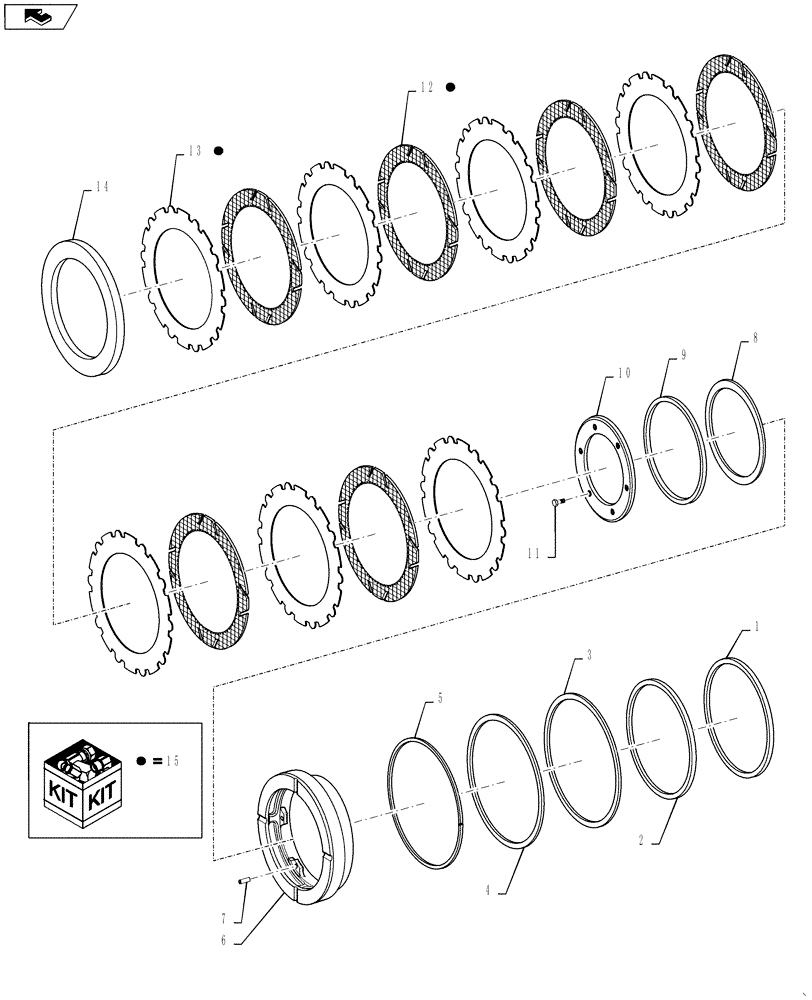

Запчасти Case 921F (33.204.02) - BRAKES, HUB DISC - REAR AXLE (33) - BRAKES & CONTROLS

1

8603577

RING

Piston Seal Support

1шт.

2

84329421

SEALING RING

1шт.

3

84329422

SEALING RING

1шт.

4

8603579

RING

Piston Seal Support

1шт.

5

8603580

SNAP RING

Brake Piston Guide

1шт.

6

84353913

PISTON

1шт.

7

87743218

PIN

Slotted

6шт.

8

84329424

CUP WASHER

1шт.

9

84329425

SPRING CUP

1шт.

10

84329427

PROTECTIVE COVER

6шт.

11

87743747

SCREW,Hex

Hex

6шт.

12

Available in Kit Only, See 15

5шт.

13

Available in Kit Only, See 15

6шт.

14

84329423

SHIM

End

1шт.

15

84573572

SERVICE KIT

Brake Service Kit, One Kit Per Axle, 821F With Limited Slip Rear Axle

1шт.

15

84573602

SERVICE KIT

Brake Service Kit, One Kit Per Axle, 821F With Front Differential Locking Axle and Open Differential Rear Axles or Limited Slip Front Axle

1шт.

15

84573602

SERVICE KIT

Brake Service Kit, One Kit Per Axle, 921F With Open Differential Rear Axle

1шт.

15

84573624

SERVICE KIT

Brake Service Kit, One Kit Per Axle, 921F With Front Differential Locking and Open Differential Axles

1шт.
