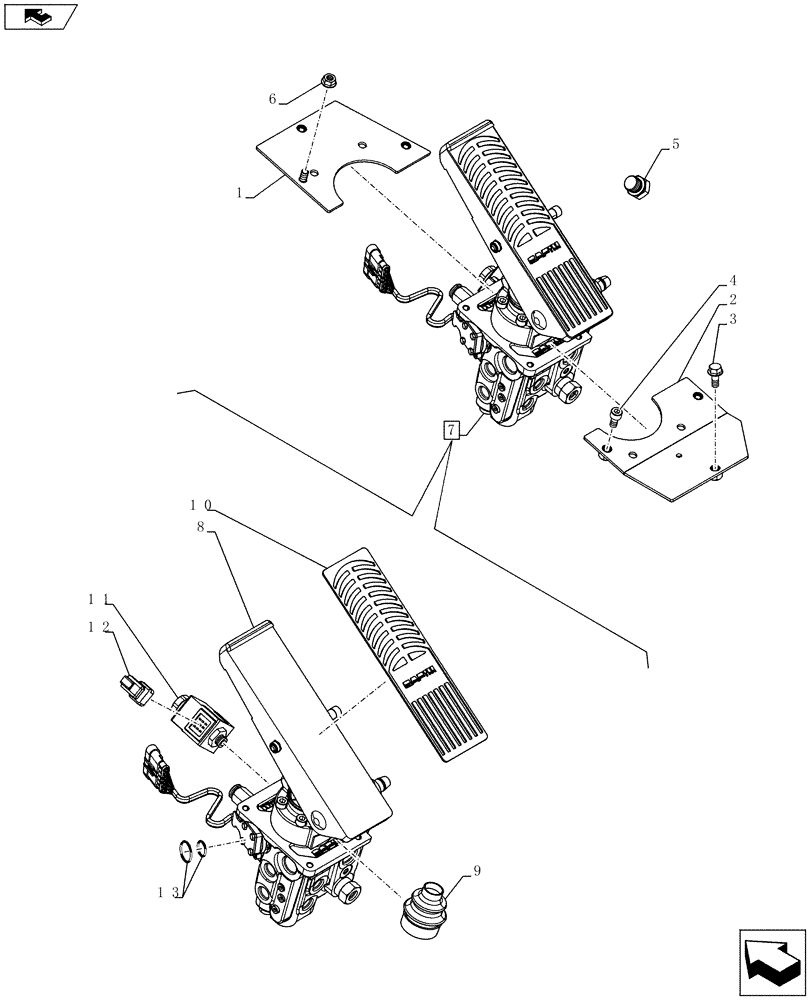

Запчасти Case 921F (33.202.01) - 5 SPEED BRAKE, TRANSMISSION (33) - BRAKES & CONTROLS

1

84375538

MOUNTING PLATE

Forward Closeout

1шт.

2

84315506

MOUNTING PLATE

PLATE, Rear Closeout

1шт.

3

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

5шт.

4

864-8016

HEX SOC SCREW,M8 x 16mm, Cl 8.8

4шт.

5

87030025

PLUG,Hex, M18 x 1.5 ORB

5-Speed Only

1шт.

87549589

SWITCH

Brake Declutch 4-Speed Only

1шт.

6

825-5148

SERRATED NUT,M8, Flg Ser

1шт.

7

84242115

BRAKE VALVE

VALVE, Brake for 5-Speed Transmission Inc 8-13

1шт.

84242113

BRAKE VALVE

VALVE, Brake for 4-Speed Transmission

1шт.

8

84361306

SUPPORT

SUPPORT, Complete Pedal

1шт.

9

84361305

BOOT

COVER, Dust rubber

1шт.

10

84361304

RUBBER PEDAL PAD

COVER, Rubber Pedal Cover

1шт.

11

84361303

SOLENOID

SOLENOID, 24 Volt Connector

1шт.

12

84361302

SOLENOID VALVE

SOLENOID, Cartridge Valve

1шт.

13

84361319

SEAL KIT

KIT, Seal

1шт.
