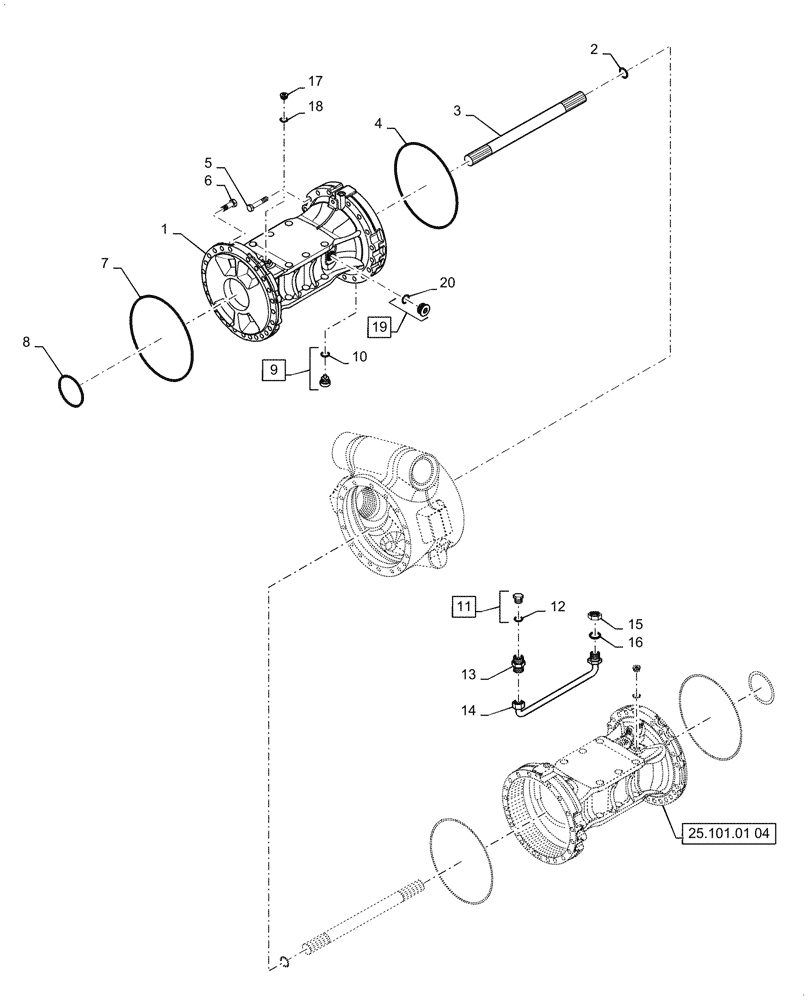

Запчасти Case 921F (25.101.01[03]) - FRONT AXLE HOUSING - DIFFERENTIAL LOCKING 821/921 (25) - FRONT AXLE SYSTEM

1

84354772

AXLE HOUSING

Front; 821 ONLY

2шт.

1

84355107

AXLE HOUSING

Front; 921 ONLY

1шт.

2

8605309

SHIM,0.60mm Thk

1шт.

2

8605310

SHIM,1.00mm Thk

1шт.

2

8605311

SHIM,1.60mm Thk

1шт.

2

8605312

SHIM,2.00mm Thk

1шт.

2

8605313

SHIM,2.50mm Thk

1шт.

3

84330543

SHAFT

Stub; 821 ONLY

2шт.

3

84354800

SHAFT

Stub; 921 ONLY

2шт.

4

8603674

O-RING,2.5mm Thk x 362mm ID, 70 Duro

360 X 2.5; 821 ONLY

2шт.

5

8603800

BOLT

M18 X 1.5 X 105-10.9; 821 ONLY

48шт.

5

84355082

BOLT

921 ONLY

36шт.

6

84330544

HEX SOC SCREW

48шт.

7

84355077

O-RING

821 QTY OF 2; 921 QTY 4

5шт.

8

84354725

SHIM

mm Thk

1шт.

8

84354726

SHIM

mm Thk

1шт.

8

84354727

SHIM

mm Thk

1шт.

8

84354728

SHIM

mm Thk

1шт.

8

84354730

SHIM

mm Thk

1шт.

9

84329418

HEX SOCKET PLUG

Incl. Ref. 10; 821 ONLY

2шт.

9

84352083

PLUG

Screw; Incl. Ref. 10; 921 ONLY

2шт.

10

8603208

O-RING,2mm Thk x 21mm ID

21 x 2

2шт.

11

84329402

PLUG

Screw

2шт.

12

100080A1

O-RING,2mm Thk x 19mm ID, 70 Duro

19 x 2

2шт.

13

87743748

SLEEVE

Screw- In

2шт.

14

84329339

BRAKE LINE

821 ONLY

2шт.

14

84355103

TUBE

Brake; 921 ONLY

2шт.

15

8603619

TUBE NUT

Axle Cooler

2шт.

16

8603725

O-RING

2шт.

17

100113A1

PLUG

Screw; M10 x 1

2шт.

18

A52231

SEALING RING

Plug, Screw M10 x 1

2шт.

19

84262309

PLUG

Hex Socket; Incl. Ref. 20; 921 ONLY

2шт.

20

8605636

O-RING,2.2mm Thk x 33mm ID

921 ONLY

2шт.
