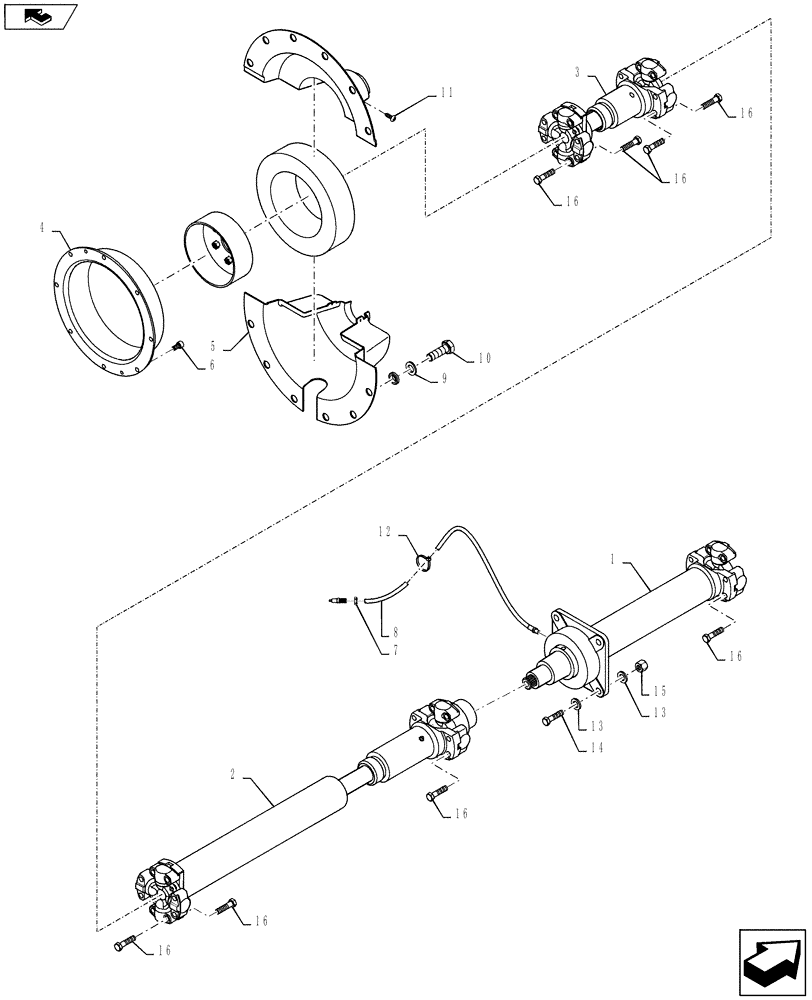

Запчасти Case 921F (21.300.02[02]) - DRIVE SHAFT INSTALLATION 921F (21) - TRANSMISSION

1

84227498

DRIVE SHAFT

Front See Fig 21.300.01

1шт.

2

84227499

DRIVE SHAFT

Center See Fig 21.300.01

1шт.

3

84227500

DRIVE SHAFT

Rear See Fig 21.300.01

1шт.

4

8501111

COUPLING FLANGE

Flywheel to Driveshaft Used On 4 Speed Trans Only

1шт.

4

84403791

FLEXIBLE COUPLING

Flywheel To Driveshaft Used On 5 Speed Trans Only

1шт.

5

87522101

COVER

Dust Used On 4 Speed Trans Only

1шт.

5

84481529

COVER

Dust Used On 5 Speed Trans Only

1шт.

6

863-10020

HEX SOC SCREW,M10 x 20mm, Cl 12.9

Used On 4 Speed Trans Only

8шт.

6

863-10075

HEX SOC SCREW,M10 x 75mm, 12.9

Used On 5 Speed Trans Only

8шт.

7

F53473

LOCK NUT,1/8-27 NPSM

1шт.

8

313683A1

FLEXIBLE HOSE

Grease

1шт.

9

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11шт.

10

806-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

11шт.

11

760-14113

SELF-TAP SCREW,Pan Hd, M3.5 x 13

2шт.

12

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.

13

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

14

827-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

4шт.

15

832-10416

NUT,M16 x 2, Cl 8

4шт.

16

428-832

BOLT,Hex, 1/2" - 20 x 2", Gr 8

20шт.

17

87371646

DRIVE SHAFT

Engine 4 Speed Trans Only CNH Black

1шт.

17

84428767

DRIVE SHAFT

Engine 5 Speed Trans Only CNH Black

1шт.
