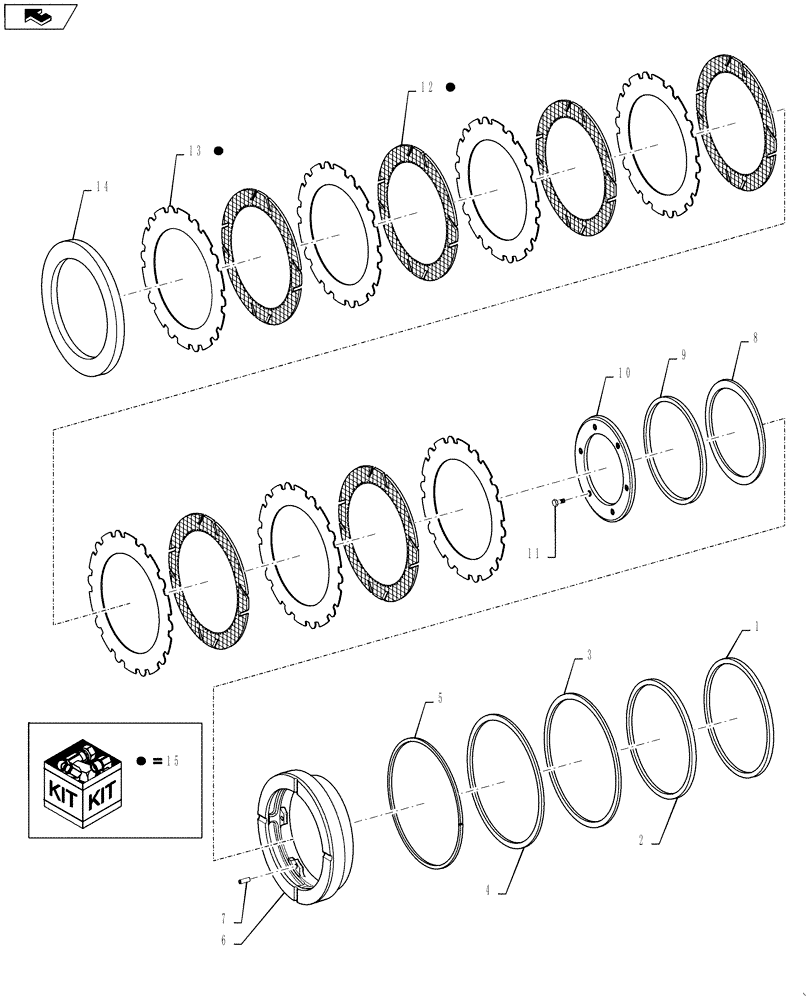

Запчасти Case 821F (33.202.AK) - REAR AXLE BRAKE ASSEMBLY (33) - BRAKES & CONTROLS

1

8603577

RING

Piston Seal Support

1шт.

2

8605315

SEAL

1шт.

3

8605314

SEAL,298mm ID x 310mm OD x 8mm Thk

1шт.

4

8603579

RING

Piston Seal Support

1шт.

5

8603580

SNAP RING

Brake Piston Guide

1шт.

6

84353913

PISTON

1шт.

7

87743218

PIN

Slotted

6шт.

8

84329424

CUP WASHER

1шт.

9

84329425

SPRING CUP

1шт.

10

84329427

PROTECTIVE COVER

6шт.

11

84395924

SCREW

Hex

6шт.

12

NSS

NOT SOLD SEPARAT

Discs, Available in Kit Only, Incl in 15

5шт.

13

NSS

NOT SOLD SEPARAT

Plates, Available in Kit Only, Incl in 15

6шт.

14

8603580

SNAP RING

End

1шт.

15

84573572

SERVICE KIT

Brake Service Kit, One Kit Per Axle, 821F With Limited Slip Rear Axle

1шт.

15

84573602

SERVICE KIT

Brake Service Kit, One Kit Per Axle, 821F With Front Differential Locking Axle and Open Differential Rear Axles or Limited Slip Front Axle

1шт.
