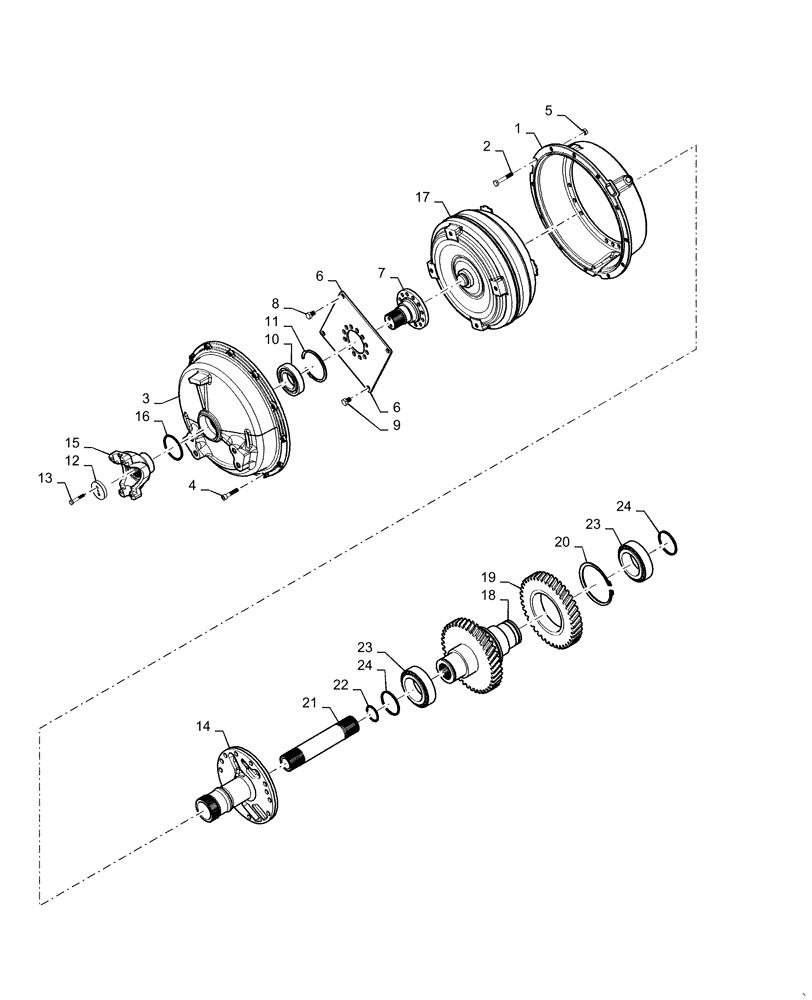

Запчасти Case 821F (21.700.AA) - TORQUE CONVERTER AND INPUT SHAFT INSTALLATION (21) - TRANSMISSION

1

8603292

BELL HOUSING

Bell, 4-Speed

1шт.

1

87498519

HOUSING

Bell, 5-Speed

1шт.

2

8603293

SCREW,Hex, M10 x 65mm

18шт.

3

8604676

COVER

Converter

1шт.

4

8603466

SCREW,M10 x 50mm

12шт.

5

8900124986

NUT

12шт.

6

8604228

DIAPHRAGM

1шт.

7

87712322

SHAFT

Input

1шт.

8

8603294

SCREW,Hex, M12 x 18mm

12шт.

9

8603294

SCREW,Hex, M12 x 18mm

4шт.

10

8604678

BALL BEARING

1шт.

11

87410351

SNAP RING

Vee

1шт.

12

8603635

WASHER

60 x 10

1шт.

13

8603405

BOLT,Hex, M8 x 50mm

2шт.

14

87712679

SHAFT

Stator

1шт.

15

8604614

YOKE

End

1шт.

16

8604229

RING

1шт.

17

87521379

CONVERTER

Torque, 4-Speed

1шт.

17

87521379R

REMAN-TORQUE CONVERT

Torque, 4 Speed

1шт.

17

87521379C

CORE-TORQUE CONVERTR

Return Number

1шт.

17

84356802

TORQUE CONVERTER

Torque, 821F, 5-Speed

1шт.

17

84356802R

REMAN-TORQUE CONVERT

821F, 5-Speed

1шт.

17

84356802C

CORE-TORQUE CONVERTR

Return Number

1шт.

17

84357966

TORQUE CONVERTER

Torque, 921F, 5-Speed

1шт.

17

84357966R

REMAN-TORQUE CONVERT

921F, 5-Speed

1шт.

17

84357966C

CORE-TORQUE CONVERTR

Return Number

1шт.

18

8603461

SHAFT

Input

1шт.

19

8604706

GEAR

Input, 4-Speed

1шт.

19

8900124994

GEAR

Input, 5-Speed

1шт.

20

8603463

RETAINER

Ring

1шт.

21

8603297

SHAFT

4-Speed

1шт.

21

8900124996

SHAFT

5-Speed

1шт.

22

8603298

SNAP RING

1шт.

23

8603301

ROLLER BEARING,60mm ID x 95mm OD x 27mm W

2шт.

24

8603302

PISTON RING

Piston

2шт.
