Запчасти Case 821F (10.500.AG[01]) - DEF TANK AND LINES INSTALLATION (10) - ENGINE

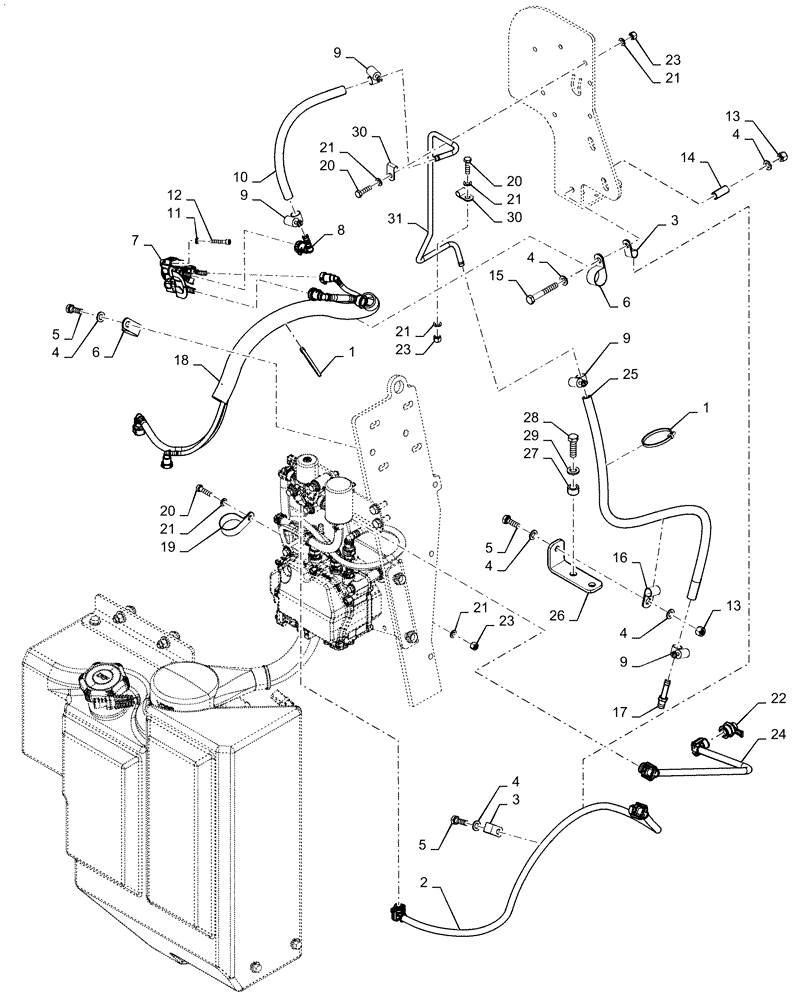

Схема запчастей Case 821F - (10.500.AG[01]) - DEF TANK AND LINES INSTALLATION (10) - ENGINE
25
15
5
1
3
30
9
5
8
21
4
6
23
4
20
11
12
28
4
10
21
21
29
7
4
17
16
20
1
9
21
20
13
9
9
30
23
5
18
24
23
4
4
14
31
26
21
3
22
13
19
6
2
21
27

Артикул

Название

Примечание

Количество

1

L11541

CABLE TIE,203.2mm L, Nylon

4шт.

2

84606228

HOSE

Coolant

1шт.

3

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

2шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

5

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

3шт.

6

515-24317

CLAMP,1 1/4", Insul, 7/16" Bolt

2шт.

7

47506932

INJECTOR, EMISSIONS

1шт.

7

47506932R

REMAN-INJEC EMISSION

1шт.

7

47506932C

CORE-INJEC EMISSION

Return Number

1шт.

8

47405903

FITTING

1шт.

9

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

4шт.

10

47601712

HOSE

Coolant

1шт.

11

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

12

120162

HEX SOC SCREW,M6 x 35mm, Cl 8.8

3шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

14

L126936

SPACER

1шт.

15

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

1шт.

16

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

1шт.

17

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

1шт.

18

47581990

HOSE

SM to DM

1шт.

19

515-23412

CLAMP,1 5/8", Insul, 3/8" Bolt

1шт.

20

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

3шт.

21

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

22

84345040

ADAPTER

1шт.

23

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

24

47603472

HOSE

Engine to Valve

1шт.

25

47601711

HOSE

Coolant

1шт.

26

84606040

BRACKET

Hose Routing

1шт.

27

D44696

BUSHING

2шт.

28

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

29

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

30

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

2шт.

31

47404908

TUBE

Coolant Return

1шт.

Выбрано товаров: 33
