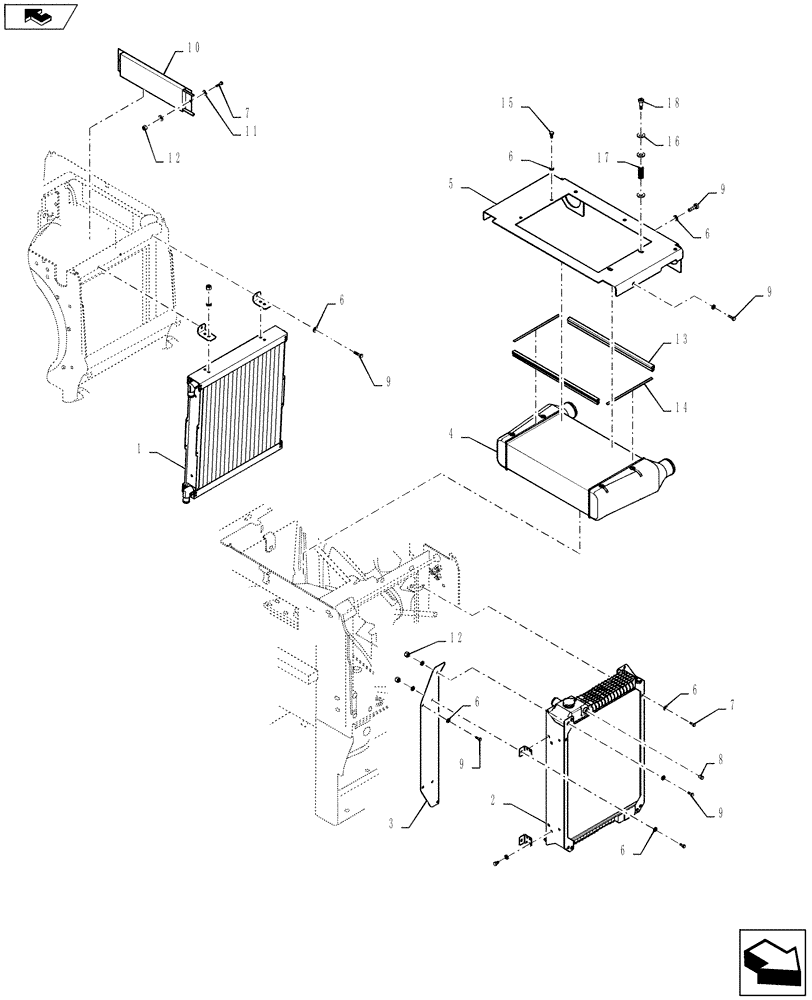

Запчасти Case 821F (10.408.AC) - RADIATOR, TRANSMISSION AND HYDRAULIC OIL COOLER INSTALLATION (10) - ENGINE

1

84338677

AFTERCOOLER

1шт.

2

84232364

RADIATOR

1шт.

3

87324042

PLATE

Radiator Makeup

1шт.

4

84251833

COOLER

Charge Air

1шт.

5

84279386

MOUNTING PLATE

Charge Air

1шт.

6

892-11008

LOCK WASHER,8mm ID

18шт.

7

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

6шт.

8

217-402

PLUG,Hex Hd, 1/8" - 27 NPT

1шт.

9

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

10шт.

10

347615A3

FUEL COOLER

Fuel

1шт.

11

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

12

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

13

84299135

RUBBER SEAL

Charge Air Bulb

2шт.

14

8500143

FOAM INSULATION,9mm W x 290mm L x 3mm Thk

Charge Air Foam

2шт.

15

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.

16

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.

17

386040R1

SPRING

Poppet Return

2шт.

18

561-703

HEX SOC SCREW,M8 x 32.4, 10 x 16mm shldr, Cl 12.9

2шт.
