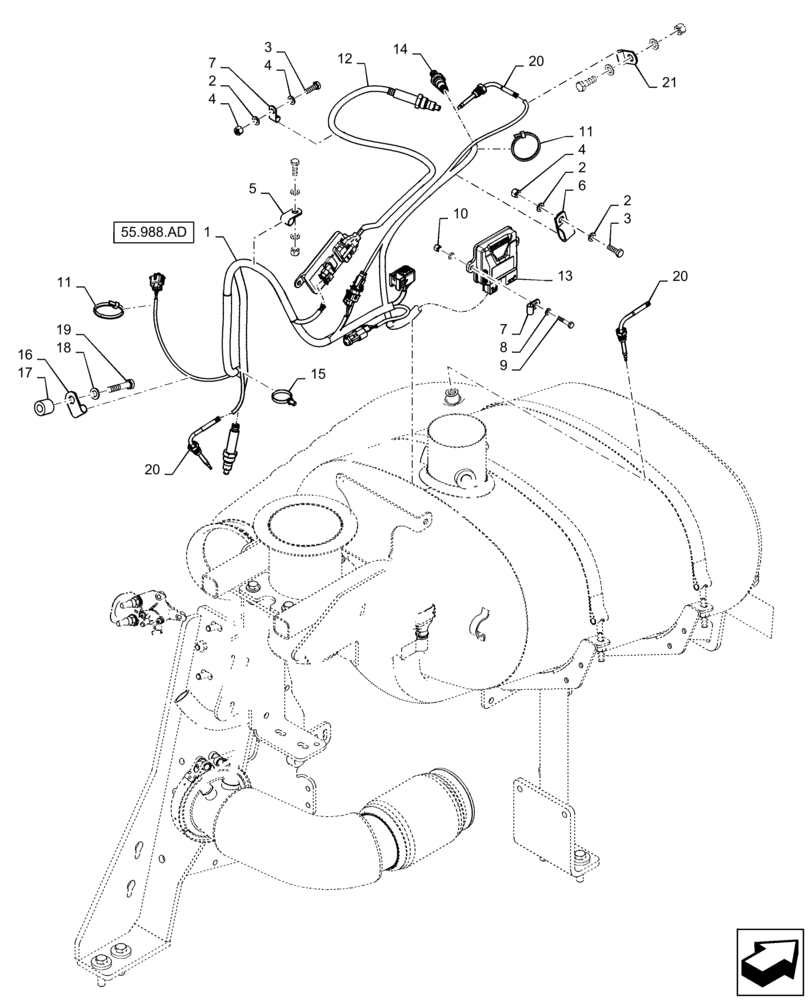

Запчасти Case 821F (10.254.AI) - SCR WIRE HARNESS INSTALLATION (10) - ENGINE

1

47491393

WIRE HARNESS

SCR System

1шт.

2

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

21шт.

3

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

12шт.

4

832-10408

NUT,M8 x 1.25, Cl 8.8

9шт.

5

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

4шт.

6

L19029

CLAMP

1шт.

7

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

2шт.

8

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

9

827-6030

BOLT,Hex, M6 x 30mm, Cl 10.9

2шт.

10

832-10406

NUT,M6 x 1, Cl 8

2шт.

11

L11541

CABLE TIE,203.2mm L, Nylon

6шт.

12

84498212

SENSOR

NOX

2шт.

13

47368959

ECU

1шт.

14

47520140

SENSOR,8 Pin

NH3

1шт.

15

87668737

CABLE TIE,203.2mm L, Nylon, Black

Fir Tree Assembly

2шт.

16

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

1шт.

17

8500877

SPACER,12.8mm ID x 25.4mm OD x 23mm L

1шт.

18

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

19

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

1шт.

20

47478880

TEMPERATURE SENDER,50mm, Closed

Temperture, and EGT

3шт.

21

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

1шт.
