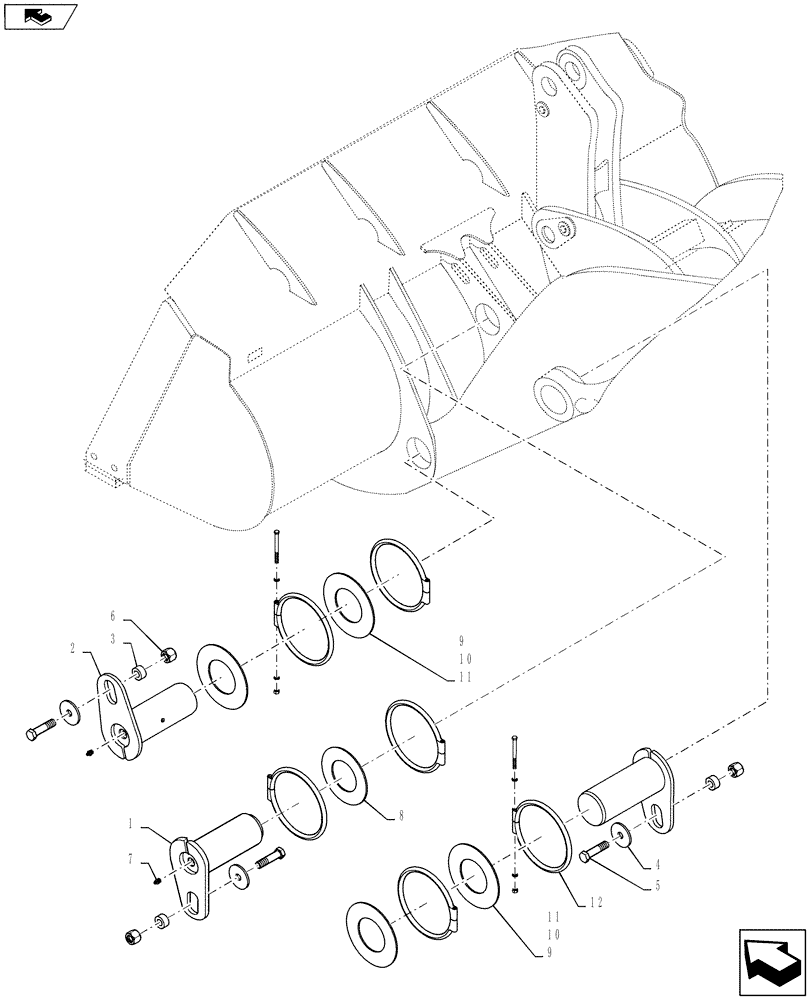

Запчасти Case 821F (82.300.AY) - BUCKET LIFT ARM PINS (82) - FRONT LOADER & BUCKET

1

87308983

PIN

Lift Arm

1шт.

2

87308975

PIN

Lift Arm

2шт.

3

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

3шт.

4

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

3шт.

5

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

3шт.

6

832-10416

NUT,M16 x 2, Cl 8

3шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

3шт.

8

87642053

WASHER,91mm ID x 170mm OD x 3.5mm Thk

1шт.

9

L118834

WASHER,83.8mm ID x 152mm OD x 3.7mm Thk

Shim; 77.6ID; 3.5 Thk

1шт.

10

441824A1

WASHER

Shim; 83.9 ID; 2.5 Thk

1шт.

11

441823A1

WASHER

Shim; 83.9 ID; 1.6 Thk

1шт.

12

87309174

O-RING,167mm ID

6шт.

13

87308983

PIN

Next to Ref 4 (88.9mm OD x 210mm L)

1шт.
