Запчасти Case 821F (55.512.CL[04]) - JOYSTICK STEERING HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS

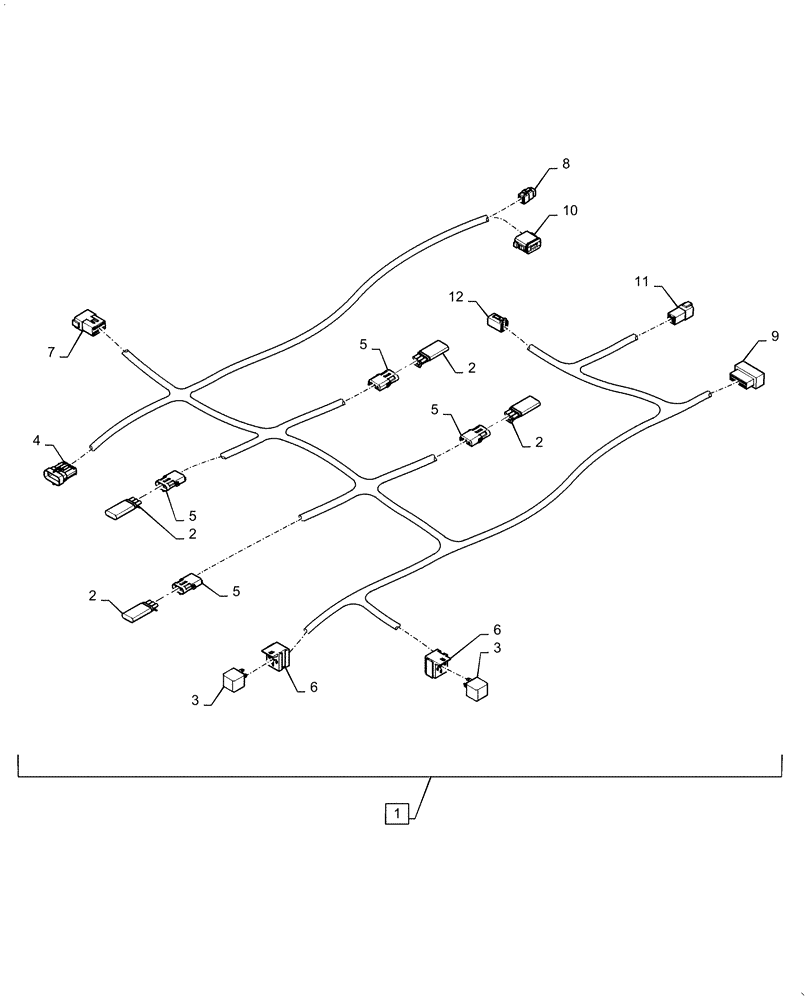

Схема запчастей Case 821F - (55.512.CL[04]) - JOYSTICK STEERING HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS
8
6
9
5
3
4
5
11
2
10
5
7
2
5
2
12
3
2
6
1

Артикул

Название

Примечание

Количество

1

84152428

WIRE HARNESS

Incl 2 - 12

1шт.

2

A187874

MODULE

4шт.

3

326845A1

RELAY,24V

2шт.

4

256354A1

CONNECTOR, ELEC

FNR console

1шт.

5

245485C1

ELEC CONNECTOR,Male, 3 Pin

3 Cavity Receptacle

4шт.

6

245731C1

CONNECTOR, ELEC

5 Cavity Mini-relay Plug

2шт.

7

225388C1

ELEC CONNECTOR,Male, 12 Pin

1шт.

8

280451A1

CONNECTOR,ELECTRIC

6 Cavity Plug

1шт.

9

84364746

ELEC CONNECTOR

16 Way Receptacle

1шт.

10

225402C1

CONNECTOR, ELEC

12 Cavity Plug

1шт.

11

225350C1

ELEC CONNECTOR,Male, 6 Pin

1шт.

12

225351C1

ELEC CONNECTOR,Female, 6 Pin

1шт.

Выбрано товаров: 12
