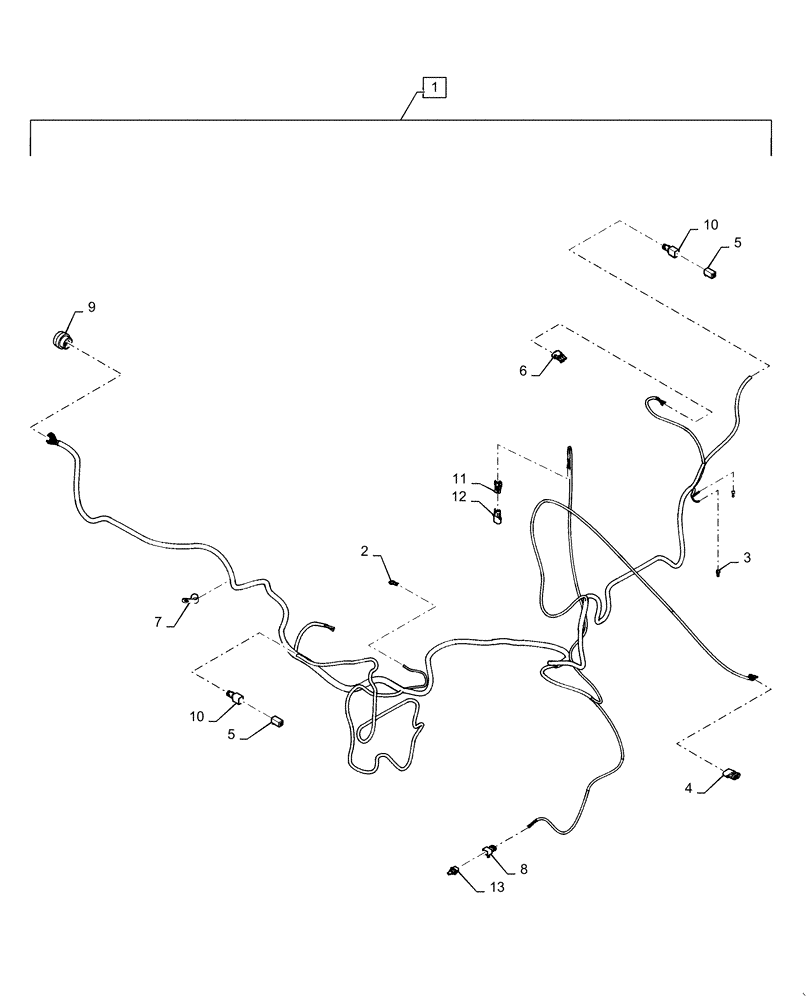

Запчасти Case 821F (55.100.AC) - FRONT CHASSIS WIRE HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS

1

47434415

WIRE HARNESS

Front Chassis, Incl 2 - 13

1шт.

2

1964718C1

TERMINAL CONNECTOR

Ring

3шт.

3

282459A1

ELEC CONNECTOR,Female, 0.75 - 2 mm2

2шт.

4

245485C1

ELEC CONNECTOR,Male, 3 Pin

1шт.

5

225351C1

ELEC CONNECTOR,Female, 6 Pin

2шт.

6

245484C1

ELEC CONNECTOR,3 Pin

1шт.

7

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

3шт.

8

291718A1

ELEC CONNECTOR,Female, 2 Pin

1шт.

9

319149A1

CONNECTOR, ELEC

1шт.

10

84253889

JUNCTION

2шт.

11

245482C1

ELEC CONNECTOR,2 Pin

1шт.

12

245483C1

ELEC CONNECTOR,Male, 2 Pin

1шт.

13

291717A1

ELEC CONNECTOR,Male, 2 Pin

1шт.
