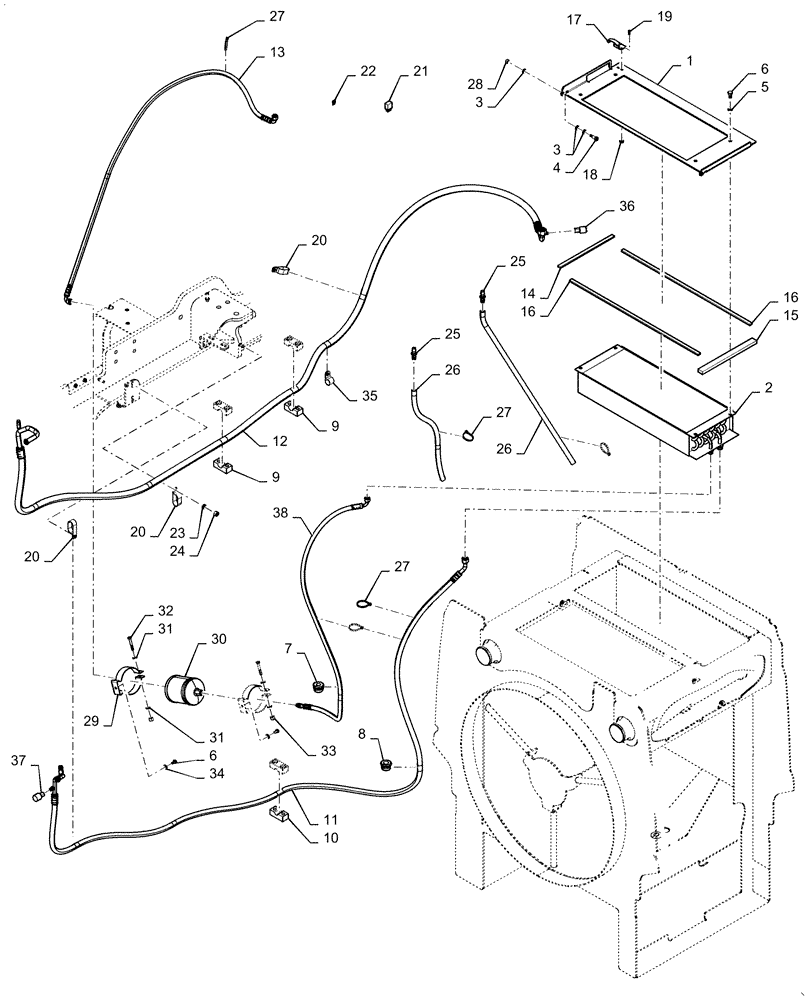

Запчасти Case 821F (50.200.BB) - A/C CONDENSER LINE INSTALLATION (50) - CAB CLIMATE CONTROL

1

84411602

PLATE

Condenser

1шт.

2

8500878

CONDENSER

1шт.

3

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

6шт.

4

84591180

HEX SOC SCREW,M8 x 16mm, Cl 12.9

2шт.

5

892-11008

LOCK WASHER,8mm ID

4шт.

6

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

6шт.

7

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

1шт.

8

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

1шт.

9

367489A1

BLOCK

Tube Mounting

2шт.

10

379374A1

BLOCK

Tube Mounting

1шт.

11

47624326

HOSE

Compressor to Condenser

1шт.

12

47597623

HOSE

Cab to Compressor

1шт.

13

84191332

A/C HOSE

Dryer to Cab

1шт.

14

87432328

SEAL

Condenser Latch

1шт.

15

8602498

SEALING STRIP,25mm W x 294mm L x 13mm Thk

A/C Cooler Foam

1шт.

16

8500133

OIL SEAL

Oil Cooler, Side

2шт.

17

60-4640T1

LATCH

1шт.

18

225-14108

NUT,#8-32

2шт.

19

440-1088

SCREW,Cross Pan Hd, #8-32 x 1/2"

2шт.

20

31-1081

CLAMP

Double

3шт.

21

87312626

RELAY,24V

5 Pin

1шт.

22

121411A1

FUSE,7.5A, Mini, Brown

1шт.

23

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

24

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

25

87587636

FITTING

1/2" Double Barbed

2шт.

26

87587637

PLASTIC-RUBBER TUBE

Drain

2шт.

27

L11541

CABLE TIE,203.2mm L, Nylon

5шт.

28

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

29

433723A1

CLAMP

2шт.

30

295006A1

RECEIVER-DRYER

1шт.

31

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

32

827-6040

BOLT,Hex, M6 x 40mm, Cl 10.9

2шт.

33

832-10406

NUT,M6 x 1, Cl 8

2шт.

34

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

35

515-24238

CLAMP,15/16", Insul, 7/16" Bolt

1шт.

36

122579A1

SWITCH, A/C LOW PRES

Low

1шт.

37

232948A1

SWITCH, A/C HIGH PRE

High

1шт.

38

84191331

A/C HOSE

Condenser to Dryer

1шт.
