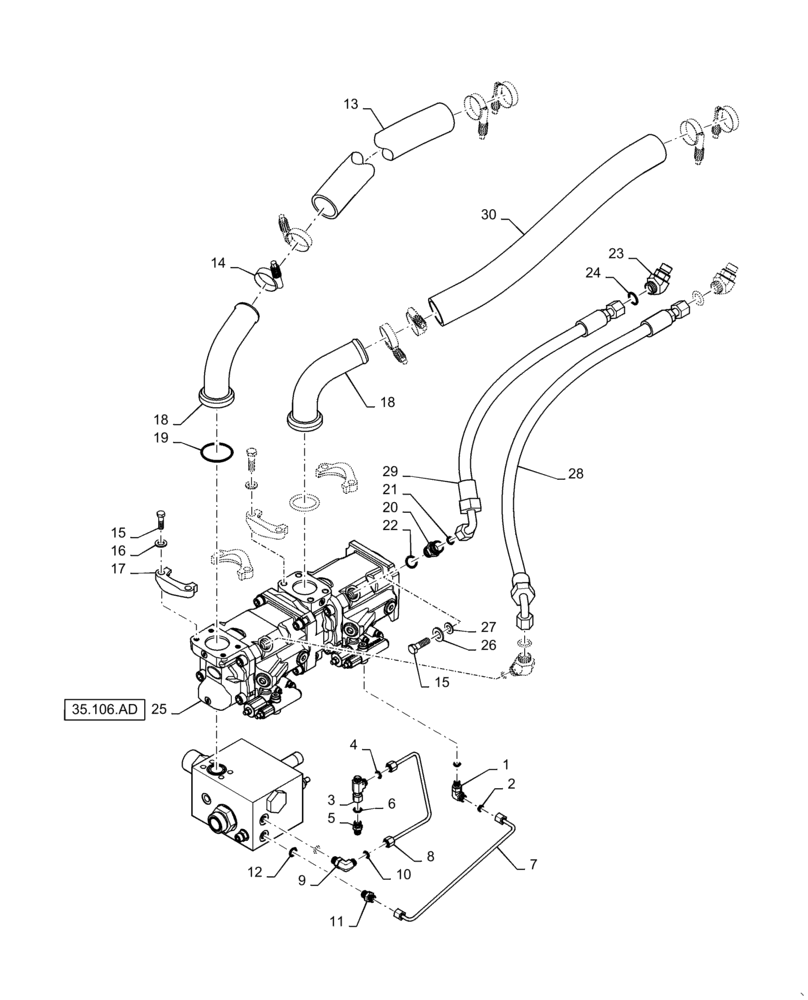

Запчасти Case 821F (41.200.BY[01]) - PRIORITY VALVE AND HYDRAULIC PUMP INSTALLATION (41) - STEERING

1

700-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

1шт.

2

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

3

83961945

TEE,9/16"-18 ORFS x 9/16"-18 Fem Sw Run

1шт.

4

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

5

700-100

HYD CONNECTOR,9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

1шт.

6

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

7

84120405

TUBE,3.2 mm ID, 6 mm OD, 316, 35 mm Length

High Pressure Pump

1шт.

8

87398122

HYD TUBE,.25" OD

Small Pump

1шт.

9

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

1шт.

10

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

11

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

1шт.

12

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

13

87323454

HOSE,3.17mm ID x 605mm L, SAE 100R4

Large Pump Suction

1шт.

14

254026A1

HOSE CLAMP,44.45mm - 66.67mm

Constant Torque

8шт.

15

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

12шт.

16

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

8шт.

17

A14141

FLANGE

Split

2шт.

18

8602646

TUBE,50.80 mm OD x 130, 100 mm L

Pump Suction

2шт.

19

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

2шт.

20

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

1шт.

21

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

22

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

23

86639053

ELBOW,45 Degree, 1"-14 ORFS x M22 x 1.5 ORB

3шт.

24

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

25

47773407

PUMP

1шт.

26

892-11012

LOCK WASHER,M12

4шт.

27

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

28

87323450

HOSE ASSY.

Small Case Drain

1шт.

29

84303150

HOSE ASSY.

Large Case Drain

1шт.

30

87323455

HOSE,3.17mm ID x 850mm L, SAE 100R4

Small Pump Suction

1шт.
