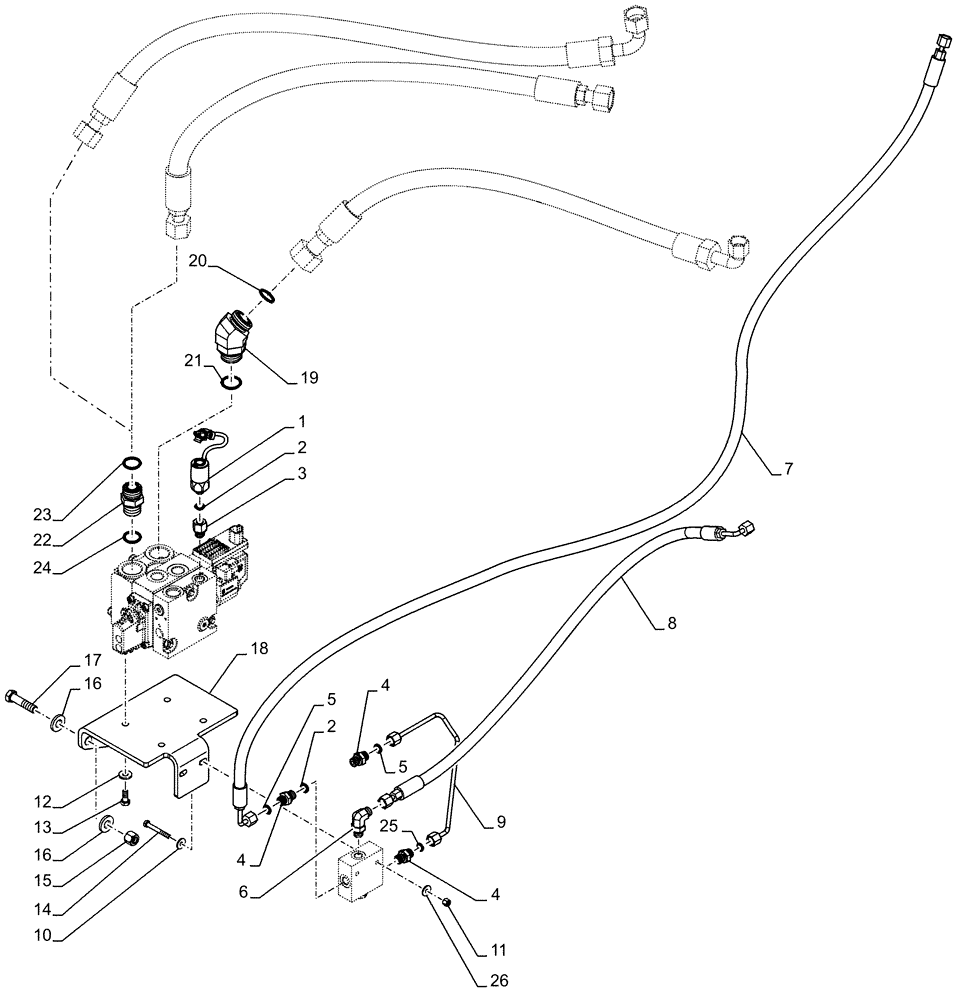

Запчасти Case 821F (41.200.AT[06]) - STANDARD STEERING WITH JOYSTICK (41) - STEERING

1

84175670

PRESSURE SWITCH

Pilot Pressure

1шт.

2

396471A1

SEAL,11.71mm ID x 19.3mm OD x 1.68mm Thk

12 mm

2шт.

3

87487329

FITTING,M14 x 1.5 ORB x M12 x 1.5 ORB

Reducer

1шт.

4

87661868

HYD CONNECTOR

3шт.

5

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

6

84176570

FITTING

90 Deg, Standard Steering

1шт.

6

84172268

HYD CONNECTOR

Straight, Auxiliary Steering

1шт.

7

87470640

HOSE ASSY.

Steering Load Sense, Standard Steering

1шт.

7

84248689

HOSE ASSY.

Steering Load Sense, Auxiliary Steering

1шт.

8

87478817

FUEL HOSE,9.53 mm ID x 305.00 mm

Steering Load Sense, Standard Steering

1шт.

8

84248706

HOSE ASSY.

Steering Load Sense, Auxiliary Steereing

1шт.

9

87477378

TUBE,0.25" OD

Steering

1шт.

10

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

11

832-10406

NUT,M6 x 1, Cl 8

2шт.

12

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

13

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

14

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

2шт.

15

832-10412

NUT,M12 x 1.75, Cl 8

3шт.

16

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

6шт.

17

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

3шт.

18

87739320

BRACKET

Joystick Steering Valve

1шт.

19

700-318

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Standard Steering

1шт.

19

86579697

ELBOW,90 Degree, 1-3/16"-12 ORFS x M27 x 2.0 ORB

Auxiliary Steering

1шт.

20

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Standard Steering

1шт.

20

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Auxiliary Steering

1шт.

21

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Standard Steering

1шт.

21

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Auxiliary Steering

1шт.

22

86579682

HYD CONNECTOR,1-3/16" - 12 ORFS x M27 x 2 ORB

1шт.

23

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

24

76088599

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

25

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

26

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

1шт.
