(41.200.AT[04]) - STANDARD STEERING NO JOYSTICK WITH AUXILIARY STEERING

Запчасти Case 821F (41.200.AT[04]) - STANDARD STEERING NO JOYSTICK WITH AUXILIARY STEERING (41) - STEERING

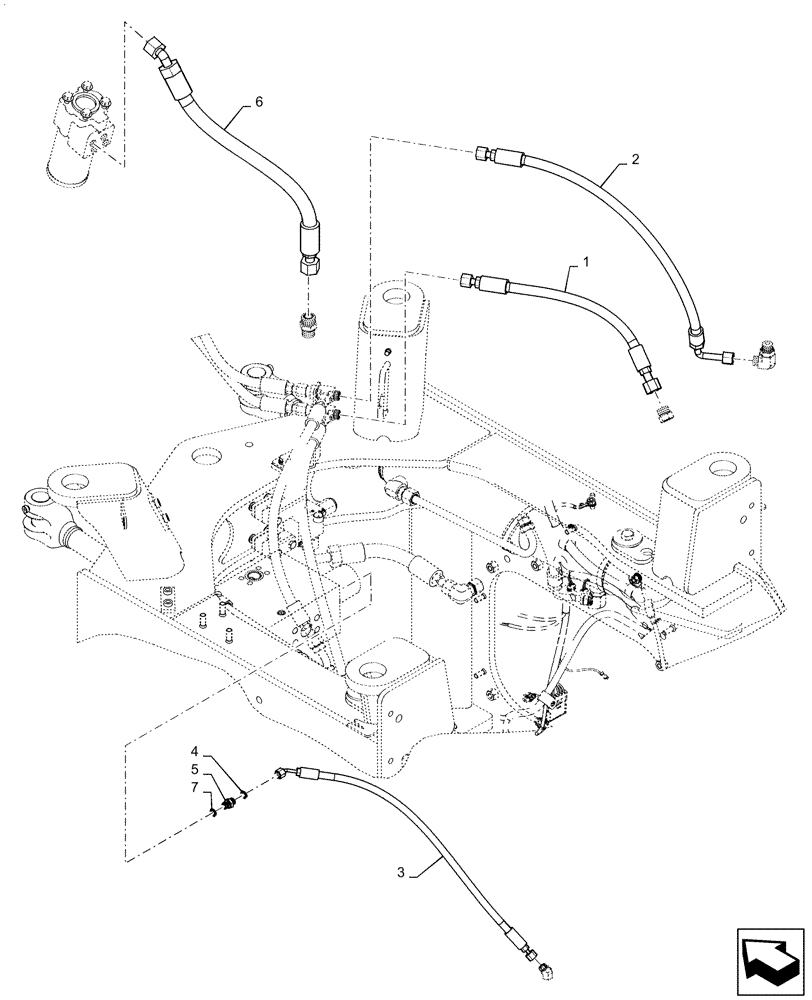

Схема запчастей Case 821F - (41.200.AT[04]) - STANDARD STEERING NO JOYSTICK WITH AUXILIARY STEERING (41) - STEERING
4
3
6
5
2
7
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47382546

HOSE

Right Side Rod

1шт.

2

47382551

HOSE

Right Side Base

1шт.

3

87379711

HOSE ASSY.

Load Sensing

1шт.

4

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

5

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

1шт.

6

87563041

HOSE ASSY.

Steering Return

1шт.

7

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.
