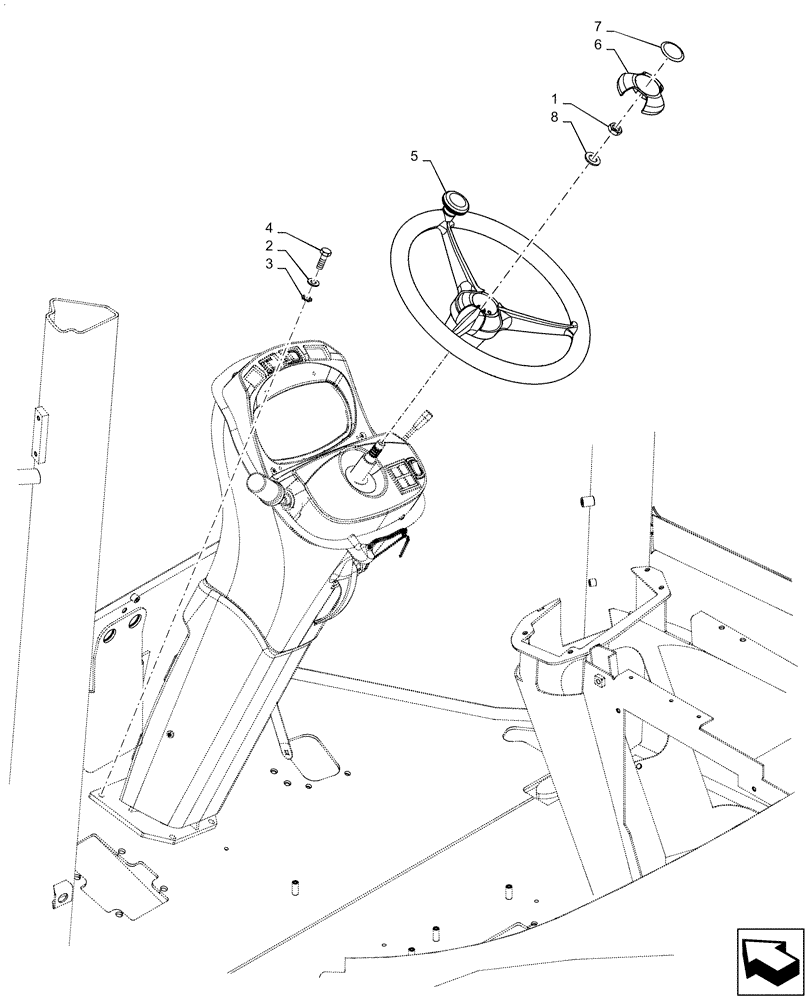

Запчасти Case 821F (41.101.AA) - STEERING WHEEL INSTALLATION (41) - STEERING

1

829-23414

THIN NUT,Thin, M14 x 1.5, Cl 05

1шт.

2

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

3

893-11010

LOCK WASHER,Ext Tooth, M10

4шт.

4

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

5

76303476

STEERING WHEEL

1шт.

6

84228200

PLUG,90mm OD

Case

1шт.

7

84528567

DECAL

Case

1шт.

8

895-11014

WASHER,M14 x 28 x 2.5

1шт.
