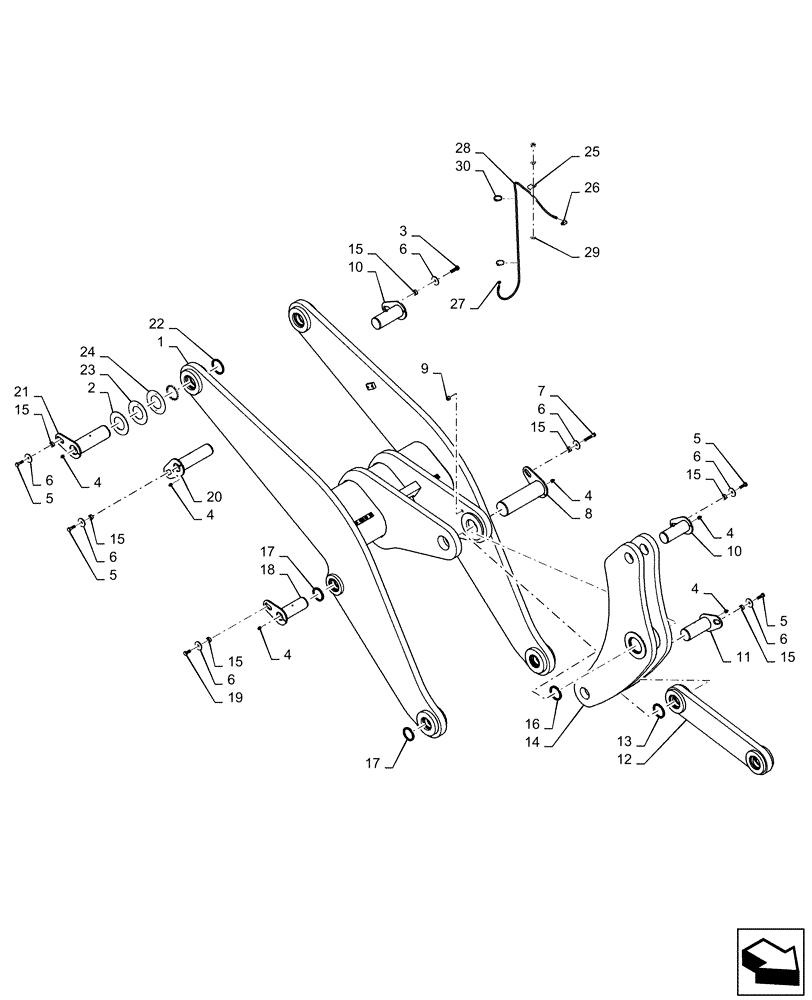

Запчасти Case 821F (39.100.AY[03]) - LIFT ARM INSTALLATION (39) - FRAMES AND BALLASTING

1

87378056

LIFT ARM

Z-Bar,

1шт.

1

87741107

LIFT ARM

XR/LR

1шт.

2

105917A1

WASHER,98mm ID x 176mm OD x 3.5mm Thk

Dump Link

1шт.

3

827-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

1шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

9шт.

5

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

6шт.

6

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

10шт.

7

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

1шт.

8

87308507

PIN,107.95mm OD x 375.5mm L

Bellcrank

1шт.

9

832-10416

NUT,M16 x 2, Cl 8

1шт.

10

87308975

PIN

Dump Link

2шт.

11

87308983

PIN

Dump Link

1шт.

12

84527286

LIFT LINK

Dump linkage Rod

1шт.

12

87613434

BUSHING,89.22mm ID x 104.88mm OD x 79mm L

2шт.

13

S92653

WIPER

Rod 88.9

4шт.

14

87305879

BELLCRANK

821F Only, For Bushing See 31

1шт.

15

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

Plated

10шт.

16

87308559

SEAL

Wiper Rod 107.95

2шт.

17

365523A1

WIPER SEAL

Wiper Rod 82.5

8шт.

18

87308951

PIN,82.5mm OD x 230mm L

Lift Cylinder

2шт.

19

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

20

87308904

PIN,82.55mm OD x 308mm L

Lift Cylinder Chassis

2шт.

21

87308438

PIN

Lift Arm

2шт.

22

86982500

SEAL,95.12mm ID x 111.15mm OD x 9.77mm Thk

Wiper Rod 95.3

4шт.

23

87308470

WASHER

Hardened 1.6 Thick

1шт.

24

87308469

WASHER

Hardened 2.4 Thick

1шт.

25

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

26

328082A1

ELBOW

90 degree

1шт.

27

F53473

LOCK NUT,1/8-27 NPSM

1шт.

28

318012A1

FLEXIBLE HOSE

Grease

1шт.

29

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

1шт.

30

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

31

87613438

BUSHING,108.27mm ID x 123.93mm OD x 84.8mm L

2шт.
