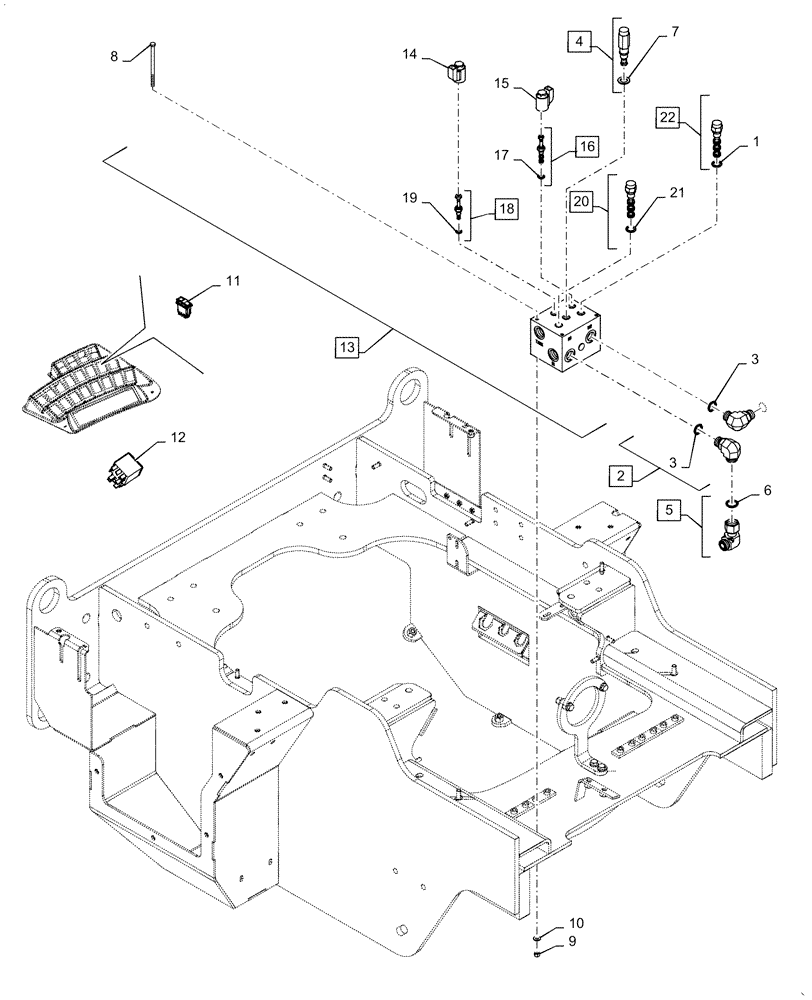

Запчасти Case 821F (35.752.AG[01]) - FAN VALVE, VARIABLE SPEED AND REVERSING (35) - HYDRAULIC SYSTEMS

1

388744A1

SEAL KIT

1шт.

2

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

2шт.

3

70923843

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

4

8605053

VALVE PRESSURE RELIE

Bi-Directional, Incl 7

1шт.

5

701-342

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Female ORFS

1шт.

6

70923843

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

7

1542833C1

SEAL KIT

1шт.

8

814-8140

BOLT,Hex, M8 x 1.25 x 140mm, Cl 8.8

3шт.

9

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

10

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

11

87350049

SWITCH

Rocker, Fan Control

1шт.

12

87312626

RELAY,24V

1шт.

13

8500565

HYDRAULIC VALVE

Fan Speed and Reverser Incl 1, 4, 7, 14 - 22

1шт.

14

87617169

COIL

Fan Valve

1шт.

15

87617170

COIL

Fan Valve

1шт.

16

8605066

VALVE PRESSURE RELIE

Incl 17

1шт.

17

87617168

SEAL KIT

1шт.

18

8605062

SOLENOID VALVE

EF Electric Proportional, Incl 19

1шт.

19

1542830C2

SEAL KIT

1шт.

20

8605059

PILOT VALVE

Directional, Incl 20

1шт.

21

388744A1

SEAL KIT

1шт.

22

8605056

PILOT VALVE

Directional, Incl 1

1шт.
