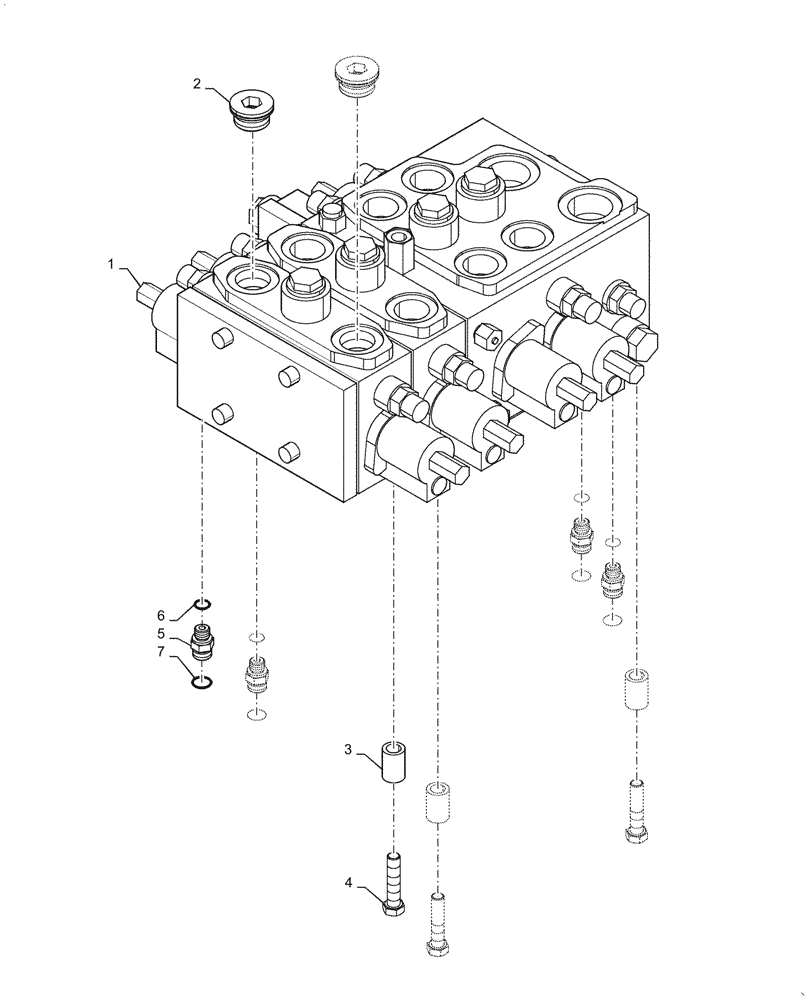

Запчасти Case 821F (35.359.AJ[01]) - FOUR SPOOL VALVE INSTALLATION (35) - HYDRAULIC SYSTEMS

1

87539283

VALVE

4 Spool

1шт.

2

221527A1

PLUG,Hex Soc, M33 x 2, ORB

2шт.

3

A27328

SPACER

3шт.

4

827-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

3шт.

5

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

4шт.

6

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

7

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

4шт.
