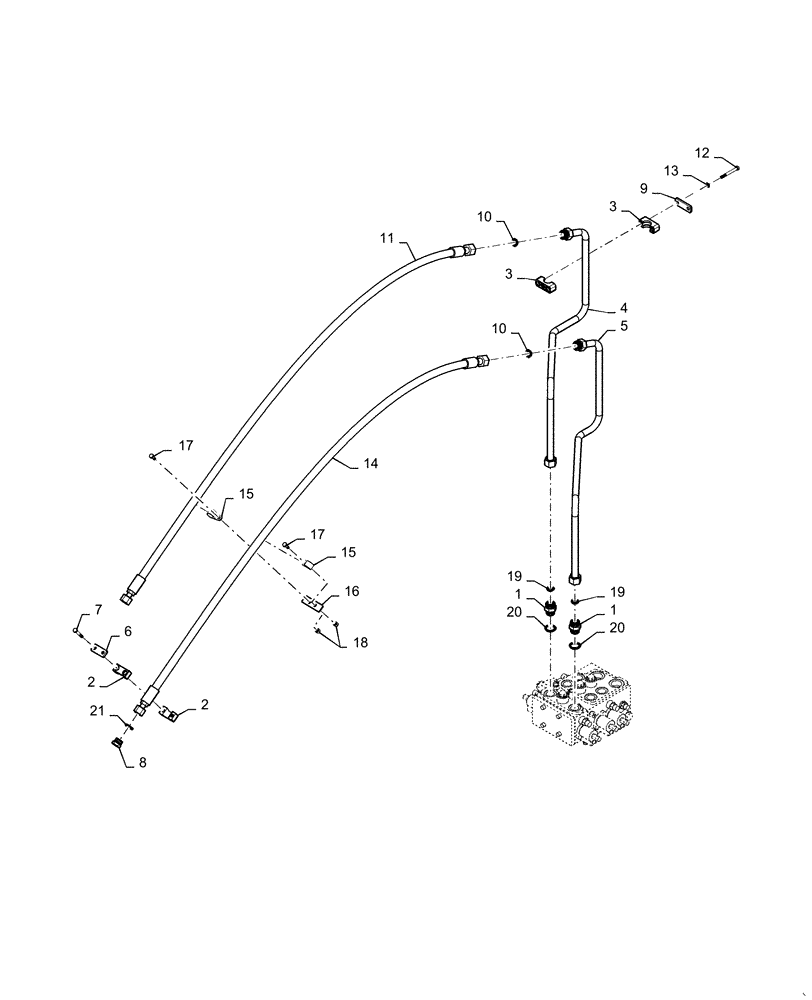

Запчасти Case 821F (35.359.AE) - ACCESSORY LINE INSTALLATION XR/LR (35) - HYDRAULIC SYSTEMS

1

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

1шт.

2

372453A1

BLOCK

Tube Mounting

2шт.

3

84240207

ASSEMBLY

2шт.

4

84234427

HYD TUBE

Right Hand Accessory

1шт.

5

84234429

HYD TUBE

Left Hand Accessory

1шт.

6

367658A1

PLATE

Clamp Cover

2шт.

7

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

4шт.

8

701-914

PLUG,Hex, 1-3/16" - 12 ORFS

2шт.

9

8500858

PLATE

Clamp Cover

2шт.

10

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

11

84307343

HYDRAULIC HOSE,19.05mm ID x 2210mm L, SAE 100R12

1шт.

12

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

4шт.

13

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

14

84364928

HYDRAULIC HOSE

1шт.

15

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

4шт.

16

84374039

BRACKET

2шт.

17

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

18

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

19

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

20

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

21

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.
