Запчасти Case 821F (90.120.01) - VINYL SEAT INSTALLATION CAB AND CANOPY (90) - PLATFORM, CAB, BODYWORK AND DECALS

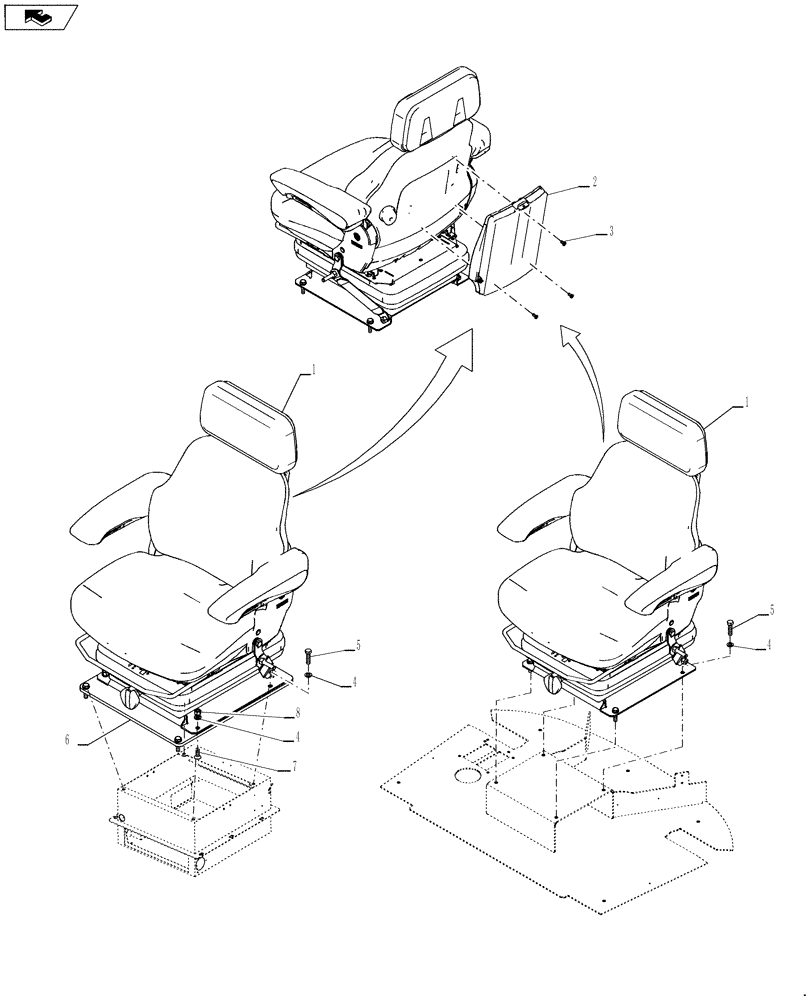

Схема запчастей Case 821F - (90.120.01) - VINYL SEAT INSTALLATION CAB AND CANOPY (90) - PLATFORM, CAB, BODYWORK AND DECALS
7
home
5
1
8
1
4
4
2
5
6
3
4

Артикул

Название

Примечание

Количество

1

399261A1

DRIVER SEAT

1шт.

2

82034977

PLASTIC CASE

Literature Box

1шт.

3

82034863

SCREW,M4 x 8mm

3шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

For Canopy Use

4шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

For Cab Use

6шт.

5

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

4шт.

6

84132813

PLATE

Spacer, For Cab Use

1шт.

7

906037R1

HEX SOC SCREW,FLAT, M10 x 30mm, Cl 10.9

For Cab Use

2шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

Выбрано товаров: 9
