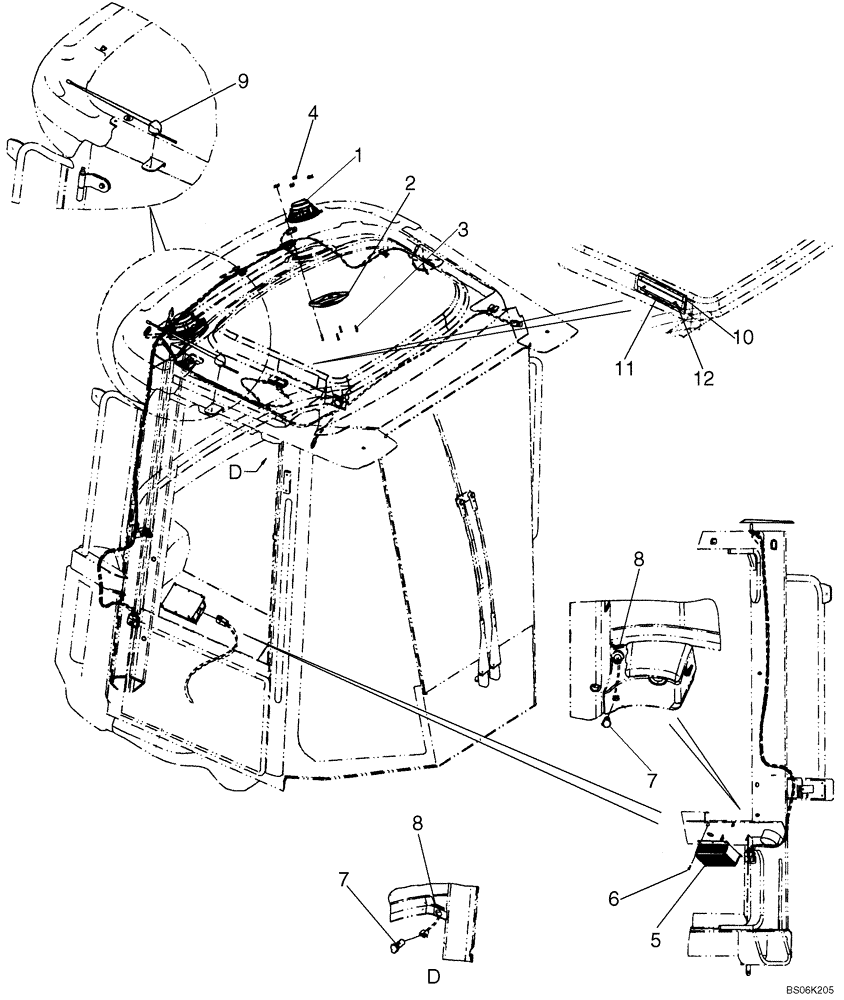

Запчасти Case 821F (88.100.02) - RADIO - 12 VOLT INSTALLATION (88) - ACCESSORIES

REF

INSTRUCTION

RADIO 12 VOLT INSTALLATION

1шт.

1

182721A2

SPEAKER

4 OHM

2шт.

2

187281A1

COVER

Grill

2шт.

3

86625223

SELF-TAP SCREW,Pan Hd, M4.2 x 25

8шт.

4

302862A1

SPRING NUT,4.2 Thread

8шт.

5

87318825

CONVERTER,24V To 12V

24V/12V

1шт.

6

840-148

SCREW,Pan, M4 x 8mm, Cl 4.8

If Used

4шт.

7

388813A1

OUTLET

Power

2шт.

8

365935A2

DECAL

12V; 10A

2шт.

9

71480988

ANTENNA

Kit

1шт.

10

NSS

NOT SOLD SEPARAT

COVER, RADIO, 87579996; No Longer Used and Not Available For Service

1шт.

11

NSS

NOT SOLD SEPARAT

BRACKET, RADIO COVER, 87579997; No Longer Used And Not Available For Service

1шт.

12

87026656

SCREW,Phillips Drive, Pan HD, M5 x 25mm, Cl 4.8

If Used: Not Used If Radio Is Installed

2шт.
