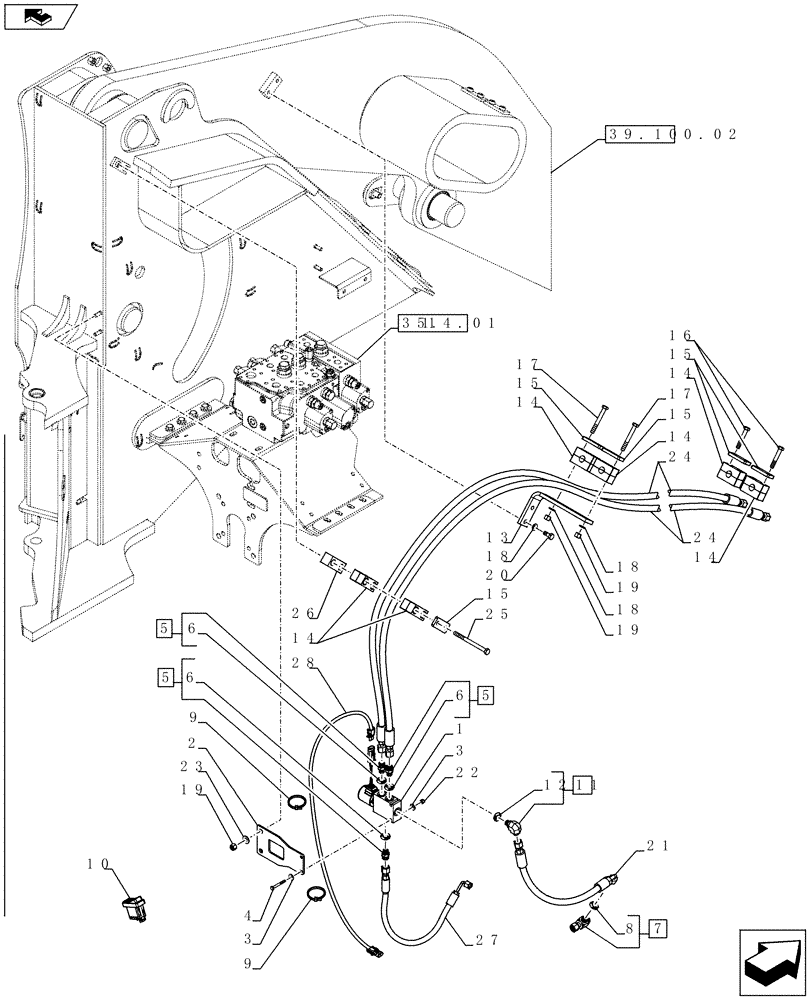

Запчасти Case 821F (82.100.05) - COUPLER VALVE SOLENOID INSTALLATION 821F (82) - FRONT LOADER & BUCKET

1

84139102

SOLENOID VALVE

1шт.

2

84257992

BRACKET, SUPPORTING

Coupler Valve

1шт.

3

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

4

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

2шт.

5

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Inc. 6

3шт.

6

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

7

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Inc. 8

1шт.

8

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

9

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP XR/LR Only

2шт.

10

364444A2

SWITCH

Pin Engage

1шт.

11

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Inc. 12

1шт.

12

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

13

373040A2

BRACKET

Hose Clamp

1шт.

14

379374A1

BLOCK

Tube Mounting

6шт.

15

367658A1

PLATE

Clamp Cover

5шт.

16

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

4шт.

17

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

4шт.

18

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

19

832-10410

NUT,M10 x 1.5, Cl 8

6шт.

20

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

21

84426367

HOSE ASSY.

Coupler Pressure

1шт.

22

832-10406

NUT,M6 x 1, Cl 8

2шт.

23

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

24

84305114

HYDRAULIC HOSE

Coupler XR/LR Only

2шт.

24

84257993

HOSE ASSY.

Coupler Z Bar Only

2шт.

25

827-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 10.9

2шт.

26

84257994

SPACER

Tube Mounting

1шт.

27

84272271

HOSE ASSY.

Coupler Valve Return

1шт.

28

84302531

WIRE HARNESS

Coupler Valve Jumper XR/LR Only

1шт.
