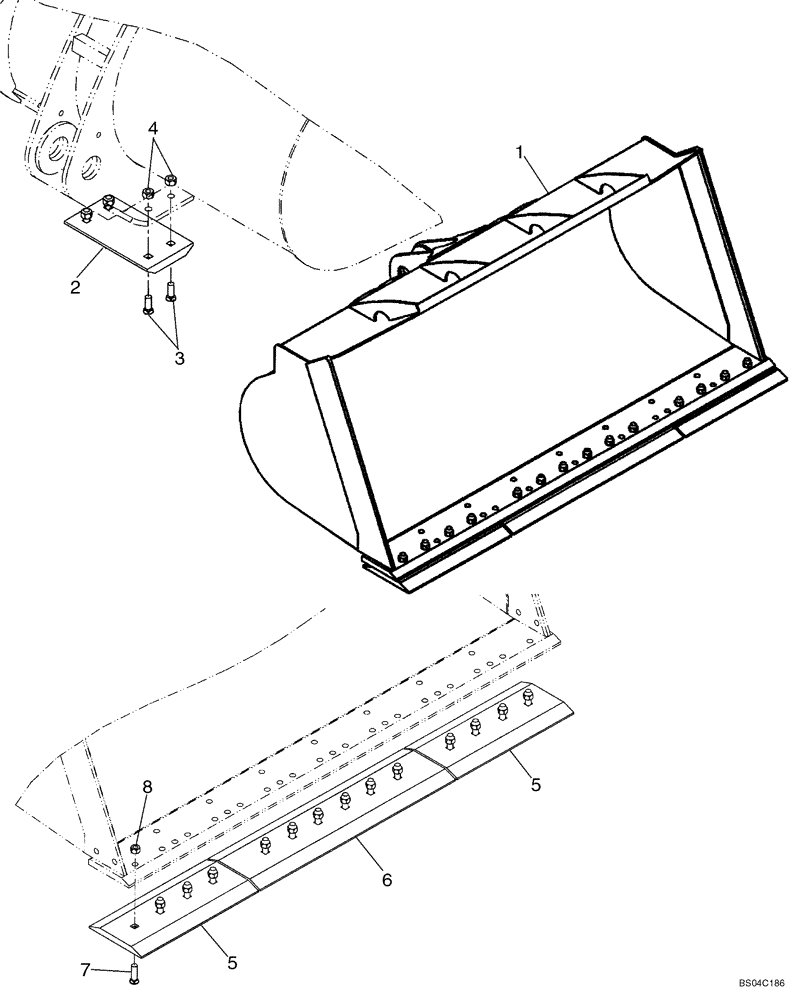

Запчасти Case 821F (82.100.02[01]) - LOADER BUCKETS BOLT ON EDGE AND SKID PADS 821F (82) - FRONT LOADER & BUCKET

1

NSS

NOT SOLD SEPARAT

3.50 Yd Bucket with Blade Inc. 2-8 Ship Direct Option Order 84143997

1шт.

1

NSS

NOT SOLD SEPARAT

4.25 Yd Bucket with Blade Inc. 2-8 Ship Direct Option Order 84144000

1шт.

1

NSS

NOT SOLD SEPARAT

4.50 Yd Bucket with Blade Inc. 2-8 Ship Direct Option Order 84144003

1шт.

2

8500180

SKID PLATE

Bottom; Bolt On

2шт.

3

420-21236

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/4", Gr 8

8шт.

4

425-1612

NUT,3/4"-10, G5, Hvy

8шт.

5

87306795

CUTTING EDGE,Bolt On, 4 Hole, 323.18mm W x 816mm L

Outer; Bolt On

2шт.

6

87306796

CUTTING EDGE,Bolt On, 6 Hole, 323.18mm W x 1377.8mm L

Center; Bolt On

1шт.

7

L125966

PLOW BOLT,#3, Dome Hd, 1" - 8 x 3.50", Gr 8

14шт.

8

329-1016

NUT,1"-8, G8

14шт.
