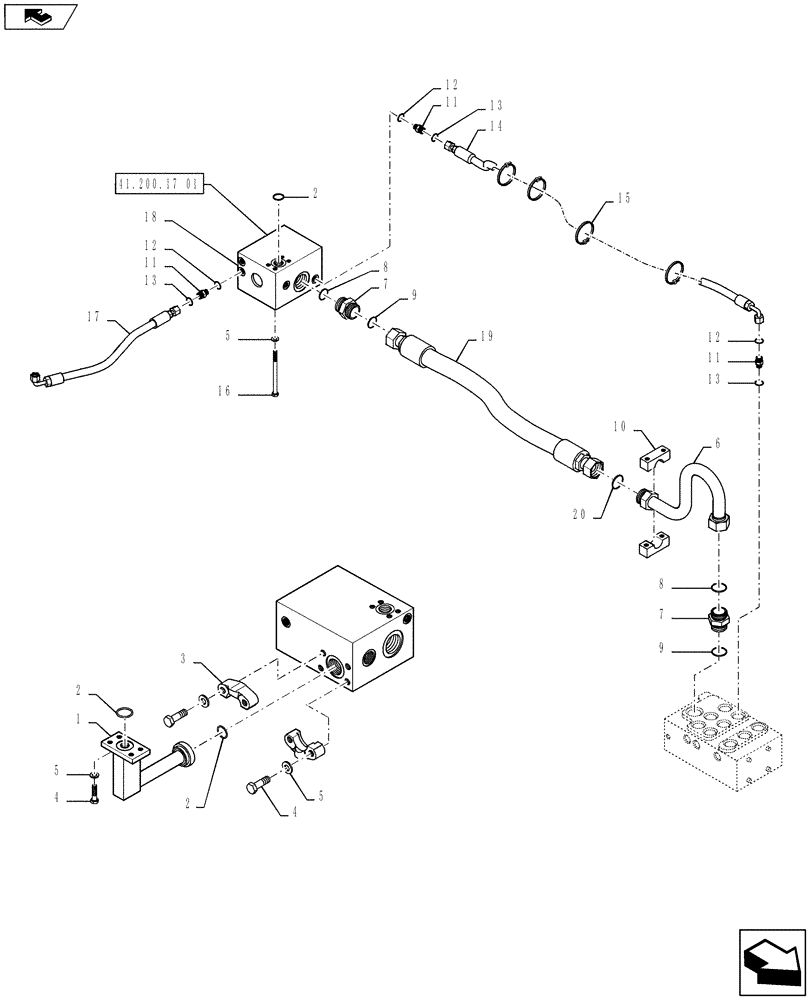

Запчасти Case 821F (41.200.08[01]) - PRIORITY PUMP INSTALLATION 821F (41) - STEERING

1

87756814

TUBE,140, 90 mm L

Priority Discharge

1шт.

2

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

3шт.

3

A12306

FLANGE

Split Half Clamp

2шт.

4

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

8шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

12шт.

6

87577822

HYD TUBE,1.25" OD

Pressure

1шт.

7

700-133

HYD CONNECTOR,1-11/16" - 12 Male ORFS x M42 x 2 Male ORB

Inc. 8, 9

2шт.

8

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Face Seal

2шт.

9

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

Boss Seal

2шт.

10

87452747

CLAMP,33.4mm ID

Tube Mounting

1шт.

11

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Inc. 12,13

3шт.

12

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

13

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

3шт.

14

87519407

HOSE ASSY.

Articulation Load Sense

1шт.

15

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

4шт.

16

827-10140

BOLT,Hex, M10 x 1.5 x 140mm, Cl 10.9

4шт.

17

87378048

HOSE ASSY.

Priority Tank

1шт.

18

87539260

VALVE

See Fig. 41.200.07 (01)

1шт.

19

87340316

HOSE ASSY.

Articulation Pressure

1шт.

20

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.
