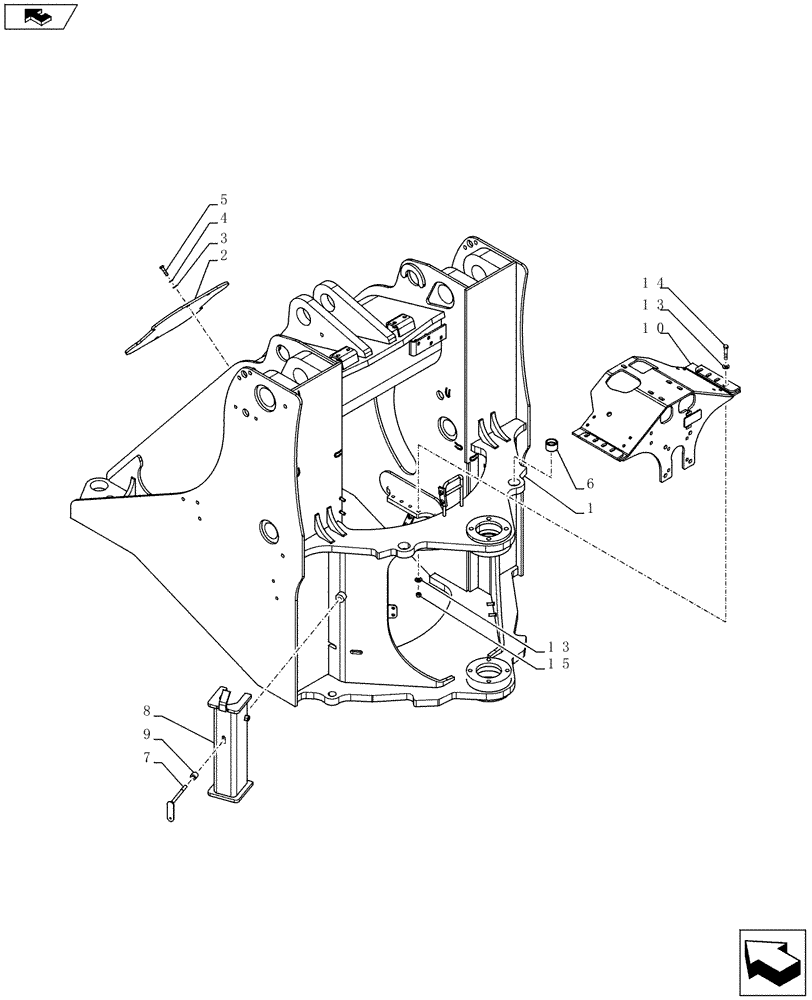

Запчасти Case 821F (39.100.02) - FRONT CHASSIS (39) - FRAMES AND BALLASTING

1

84242157

FRAME

Front Chassis, 821F Only

1шт.

1

84238503

FRAME

Front Chassis, 921F Only

1шт.

2

8605898

COVER

Valve

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

4

892-11010

LOCK WASHER,M10

3шт.

5

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

3шт.

6

8500173

BUSHING,40.22mm ID x 49.87mm OD x 32mm L

Steering Unfinished

2шт.

7

8500875

HANDLE

Linkage Channel, 821F Only

1шт.

7

84304606

HANDLE

Linkage Channel, 921F Only

1шт.

8

87435589

CHANNEL

Linkage Support, 821F Only

1шт.

8

84304607

CHANNEL

Linkage Support, 921F Only

1шт.

9

8500877

SPACER,12.8mm ID x 25.4mm OD x 23mm L

Bushing Handle

1шт.

10

84240212

BRACKET, SUPPORTING

Valve Mount

1шт.

11

NSS

NOT SOLD SEPARAT

Plate, Loader Valve (Not Shown)

1шт.

12

NSS

NOT SOLD SEPARAT

Plate, Bearing Carrier (Not Shown)

1шт.

13

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

16шт.

14

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

8шт.

15

829-1412

NUT,M12, Cl 10.9

8шт.
