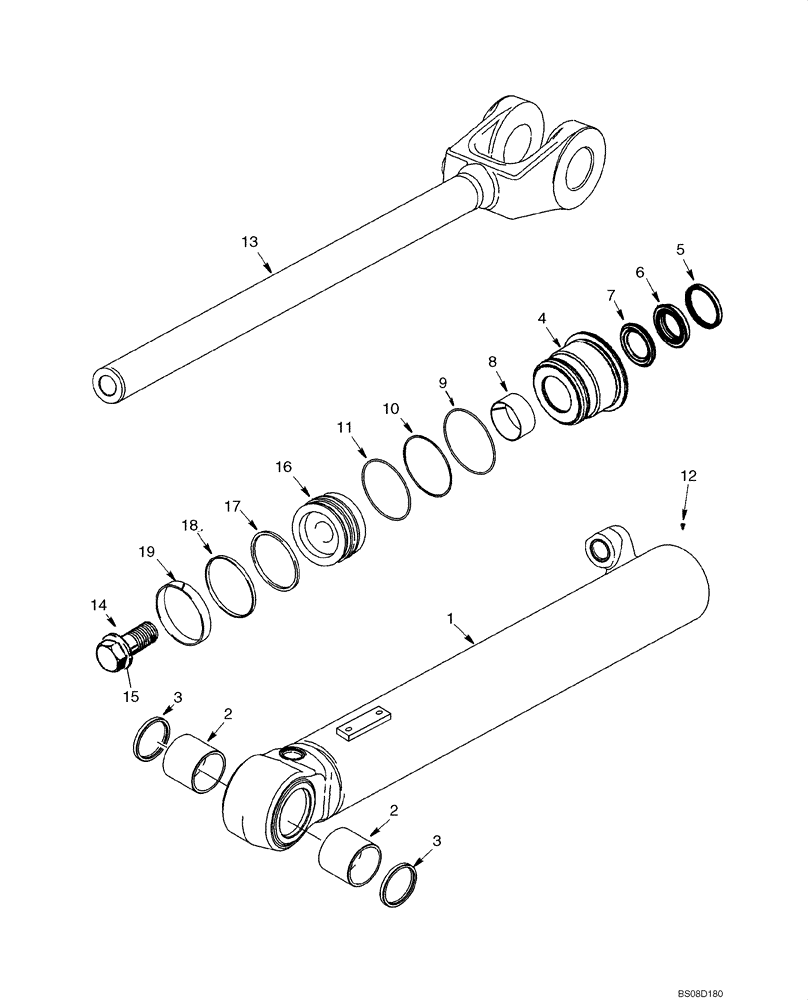

Запчасти Case 821F (35.901.04) - LIFT CYLINDER ASSEMBLY 821F (35) - HYDRAULIC SYSTEMS

84244454

LIFT CYLINDER,Double Acting, 76.2mm Rod, 845.7mm Stroke

Lift, 139.7 x 76.2 mm Stroke; Incl. Refs. 1 - 19, Gray, For Seal Kit See 20

2шт.

84244456

HYDRAULIC CYLINDER,76.2mm Rod, 1450.5mm Stroke

Lift, 139.7 x 76.2 mm Stroke; Incl. Refs. 1 - 19, Tan, For Seal Kit See 20

2шт.

84244440

GLAND

Service Seal Kit

1шт.

84244443

PISTON

Service Seal Kit

1шт.

1

Tube Assembly Must Order Item # 84244456 or #84244454

1шт.

2

87625612

BUSHING,82.86mm ID x 98.53mm OD x 36mm L

Replaces 446330A1

2шт.

3

365523A1

WIPER SEAL

2шт.

84244440

GLAND

ASSY., Incl. Refs. 4 - 11

1шт.

4

84244439

GLAND

1шт.

5

D95148

WIPER SEAL

1шт.

1542881C1

SEAL KIT

Rod and Buffer; Incl. Refs. 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL, ROD

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL, BUFFER

1шт.

8

87615487

SEAL

1шт.

9

238-5254

O-RING,0.139" Thk x 5.484" ID, -254, Cl 5, 75 Duro

1шт.

10

380621A1

BACK-UP RING

1шт.

11

238-5250

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

1шт.

12

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

13

87308533

ROD ASSY.

1шт.

14

86982444

SPECIAL BOLT,Hex, 12, 1 1/2 x 3.50"

Incl. Ref. 15

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER

1шт.

84244443

PISTON

Incl. Refs. 16 - 19

1шт.

16

84244441

PISTON

1шт.

17

87530710

SEAL,Square, 6.86mm Thk x 113.14mm ID

Loader

1шт.

18

87715791

SEAL,139.7mm OD

Piston

1шт.

19

1980266C1

SEALING RING,133.4mm ID x 139.7mm OD x 18.9mm Thk

1шт.

20

84244457

SEAL KIT

1шт.
