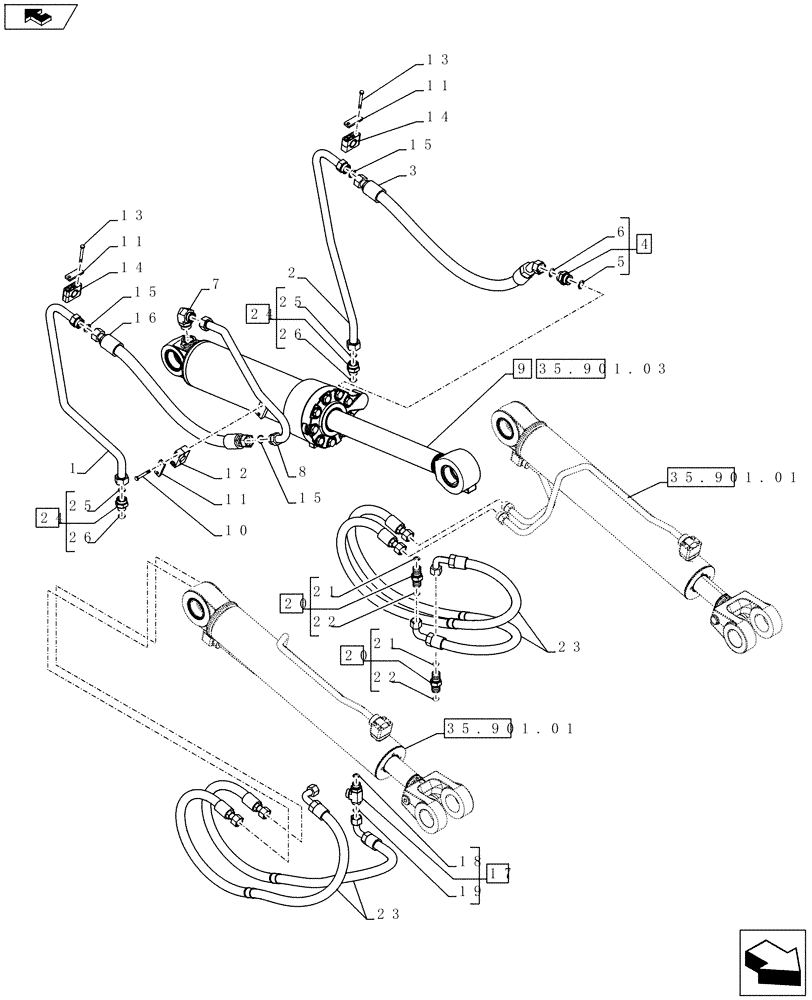

Запчасти Case 821F (35.901.02) - LOAD TILT ASSEMBLY 821F (35) - HYDRAULIC SYSTEMS

1

84234415

HYD TUBE

Tilt Base

1шт.

2

84234421

HYD TUBE

Tilt Rod

1шт.

3

84234425

HOSE ASSY.

Tilt Cylinder Rod

1шт.

4

84164190

HYD CONNECTOR

1шт.

5

86598105

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

(Not Shown)

1шт.

6

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

(Not Shown)

1шт.

7

700-309

ELBOW,90 Degree Elbow, 1-11/16" - 12 Male ORFS x M42 x 2 Male ORB

1шт.

8

84234419

HYD TUBE

Tilt Cylinder

1шт.

9

87337179

CYLINDER ASSY.

Tilt

1шт.

87337180R

REMAN-HYD CYLINDER

821F - WHEEL LOADER TIER 4 (NA) Reman for new P/N 87337179

1шт.

87337180C

CORE-HYD CYLINDER

Return Number

1шт.

10

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

2шт.

11

8500858

PLATE

Clamp Cover

4шт.

12

87452747

CLAMP,33.4mm ID

Tube Mounting

1шт.

13

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

4шт.

14

84240210

CLAMP,16mm ID

Tube Mounting

2шт.

15

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

4шт.

16

84234418

HOSE ASSY.

Tilt Cylinder Base

1шт.

17

84164192

HYD CONNECTOR

Tee

1шт.

18

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

(Not Shown)

1шт.

19

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

(Not Shown)

1шт.

20

84164179

HYD CONNECTOR

1шт.

21

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

(Not Shown)

1шт.

22

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

(Not Shown)

1шт.

23

87331345

HOSE ASSY.,25.4mm ID x 1958mm L, SAE 100R12

Lift Base

4шт.

24

84164188

HYD CONNECTOR

2шт.

25

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

(Not Shown)

2шт.

26

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

(Not Shown)

2шт.
