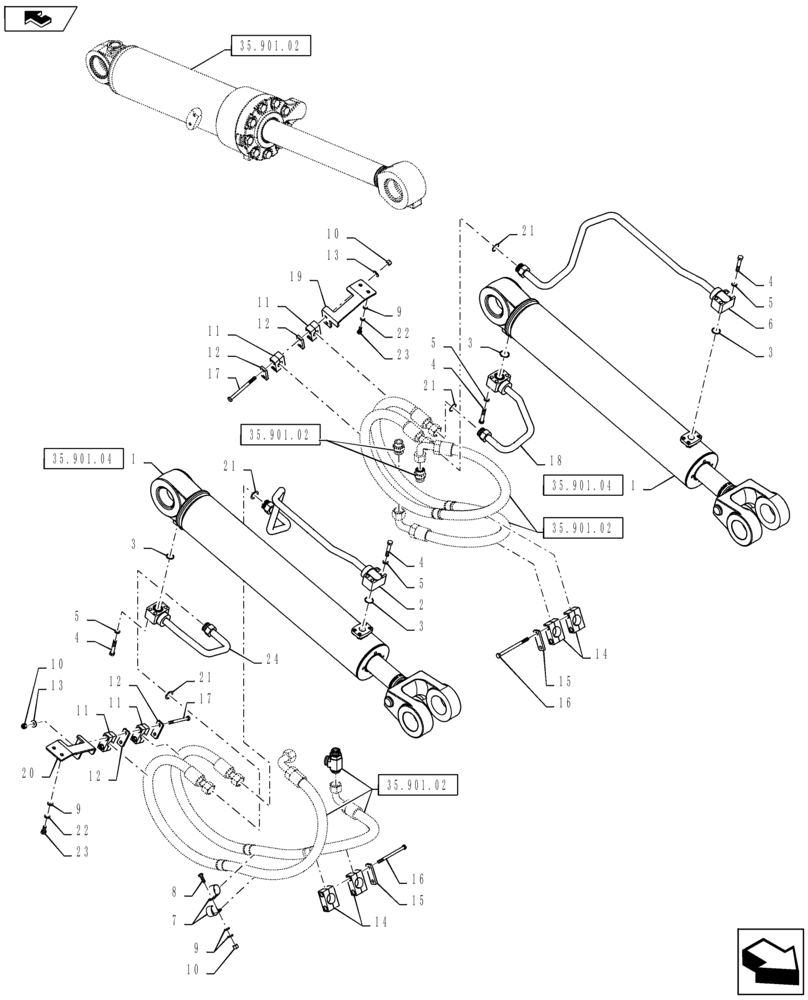

Запчасти Case 821F (35.901.01) - LOAD LIFTER ASSEMBLY 821F (35) - HYDRAULIC SYSTEMS

1

84244456

HYDRAULIC CYLINDER,76.2mm Rod, 1450.5mm Stroke

Assembly

2шт.

2

84248682

HYD TUBE

Right Hand Lift Rod

1шт.

3

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

4шт.

4

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

16шт.

5

892-11012

LOCK WASHER,M12

Spring Lock

16шт.

6

84248685

HYD TUBE

Left Hand Lift Rod

1шт.

7

515-25381

CLAMP,1 1/2", Insul, 1/2" Bolt

2шт.

8

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

5шт.

11

367489A1

BLOCK

Tube Mounting

4шт.

12

NSS

NOT SOLD SEPARAT

Clamp Cover Plate

4шт.

13

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

14

87444561

BLOCK

Tube Mounting

4шт.

15

8500858

PLATE

Clamp Cover

1шт.

16

827-10150

BOLT,Hex, M10 x 1.5 x 150mm, Cl 10.9

4шт.

17

827-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 10.9

4шт.

18

84248679

HYD TUBE

Left Hand Lift Base

1шт.

19

87360954

BRACKET, SUPPORTING

Bracket, Left Side Lift

1шт.

20

87360960

BRACKET, SUPPORTING

Bracket, Right Side Lift

1шт.

21

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

4шт.

22

892-11010

LOCK WASHER,M10

4шт.

23

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

24

84248676

HYD TUBE

Right Hand Lift Base

1шт.
